Retsch Grinding Jars
>
|
|
| Place of Origin | Hunan, China |
| Brand Name | kingda |
| Certification | TUV |
| Model Number | Retsch VIBRATORY DISC MILLRS 200,RS300 |
RETSCH 100ml Tungsten Carbide Comfort Grinding Jars used for VIBRATORY DISC MILLRS 200/RS300
With polished surface, highly wear-resistant and resistant to acid and alkali and high hardness, tungsten carbide ball mill jars can meet the vast majority of metal powder crushing and refining. Tungsten carbide ball mill jar is used as milling jar of planetary ball mill,virbratory disc mill matched with tungsten carbide balls, which is suitable for grinding materials in high hardness such as hard alloy powder, diamond powder, and silicon carbide powder, etc.
We have mass-produced various types of ball mill jars for Retsch and Fristch from Germany brand.
For Retsch grinding jar: 50ml,80ml,125ml tungsten carbide,agate, zirconium oxdie, alumina oxide, grinding jar for Retsch planetary bal mill PM100, PM100CM, PM200, PM 400; 25ml,35ml,50ml tungsten carbide,zirconia oxide jars for Retsch Mix mill MM 500; 50ml,100ml,250ml and 500ml tungsten carbide ,agate, zirconia oxide for Retsch vibratory disc ball mill RS200,RS300.
For Fritsch grinding jar: 250ml and 500ml agate,zirconia,alumina oxide, grinding jar for Fritsch P6.
We have inventory of all the above ball mill jars. Just let us talk more!
Physical Parameters:
|
Composition % |
Grade |
Specific Gravity g/cm3 |
Compression modulus Mpa |
Hardness HRA |
Bending strength Mpa |
Elasticity modulus Gpa |
|
WC: 92% Cobalt: 8% |
YG8 |
≥14. 6 |
56 |
89. 0 |
≥2320 |
510.0 |
Dimesion for our regualar avaliable Tungsten carbide milling jars
|
Volume of Jar |
External Diameter |
Inner Diameter |
Height of without lid (mm) |
Total Height |
|
50ml |
49 |
38 |
52 |
56 |
|
100ml |
63 |
52 |
59 |
63 |
|
250ml |
85 |
73 |
69 |
75 |
|
500ml |
104 |
90 |
96 |
103 |
|
1L |
131 |
115 |
110 |
117 |
|
1.5L |
131 |
115 |
172 |
181 |
|
2L |
170 |
156 |
121 |
128 |
|
Remarks: Size deviation within ±0.5mm,weight deviation within ±50-100gram We also can provide YG6,YG15 WC.
|
||||

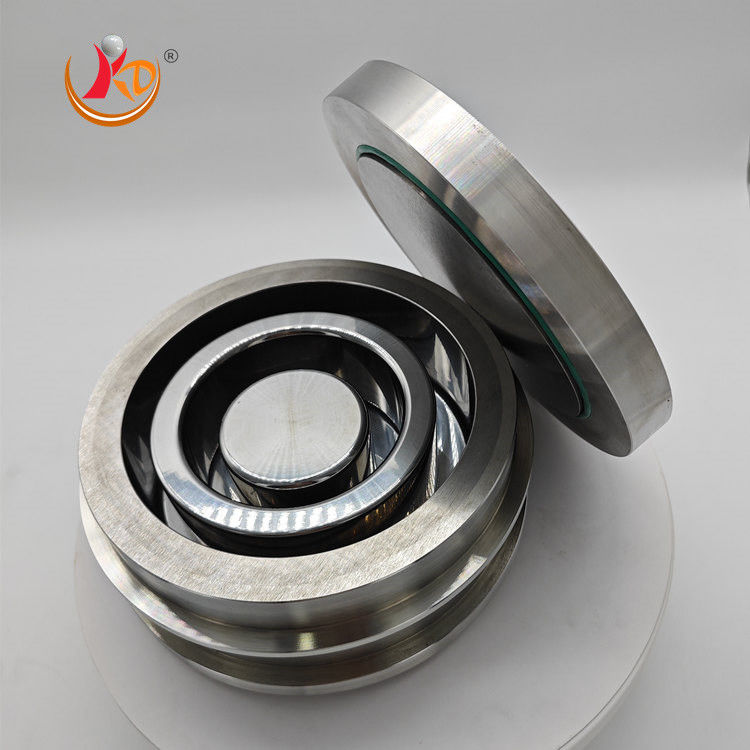

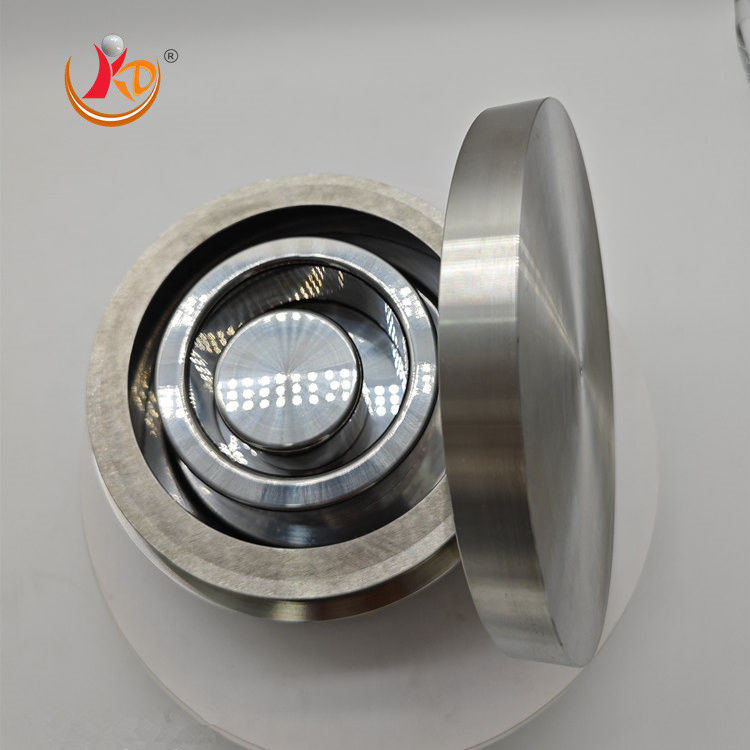

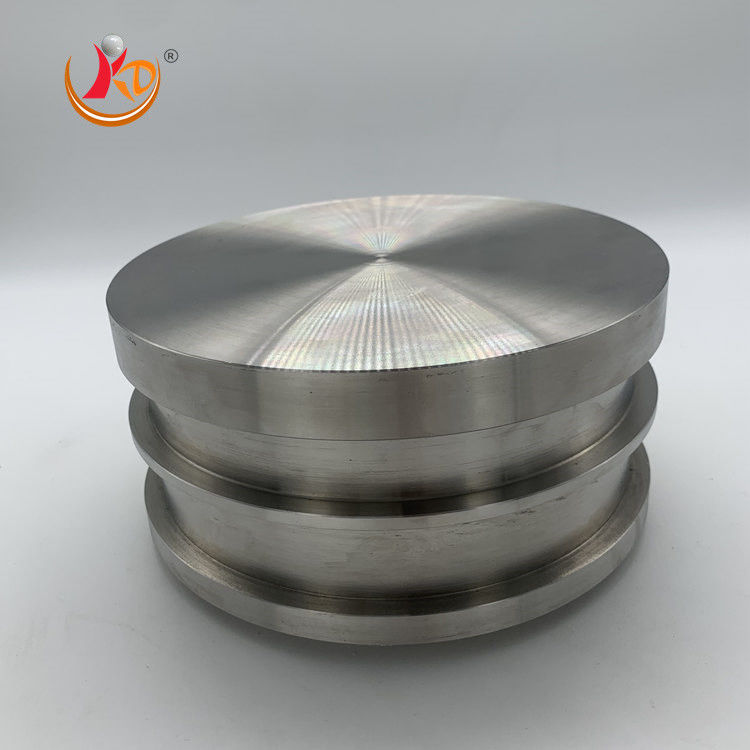

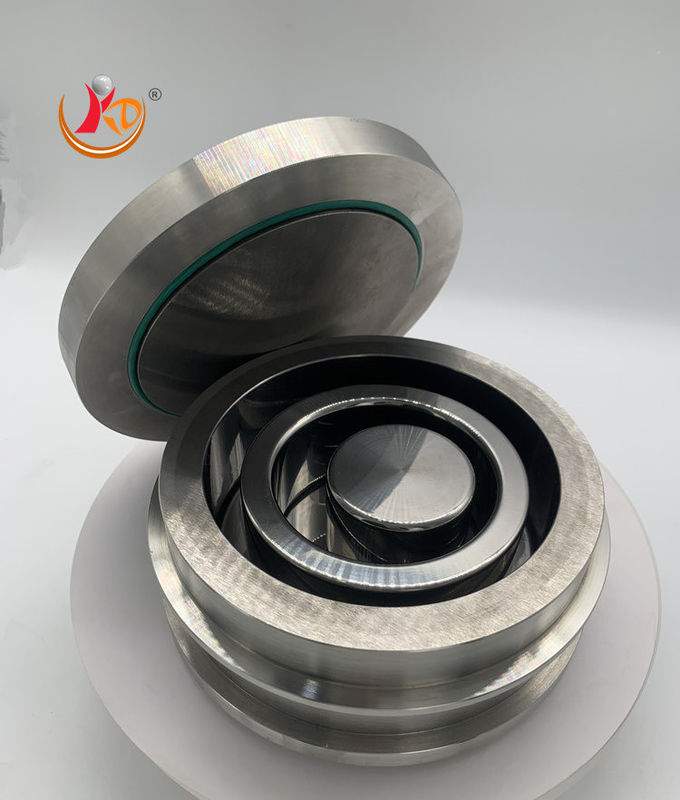

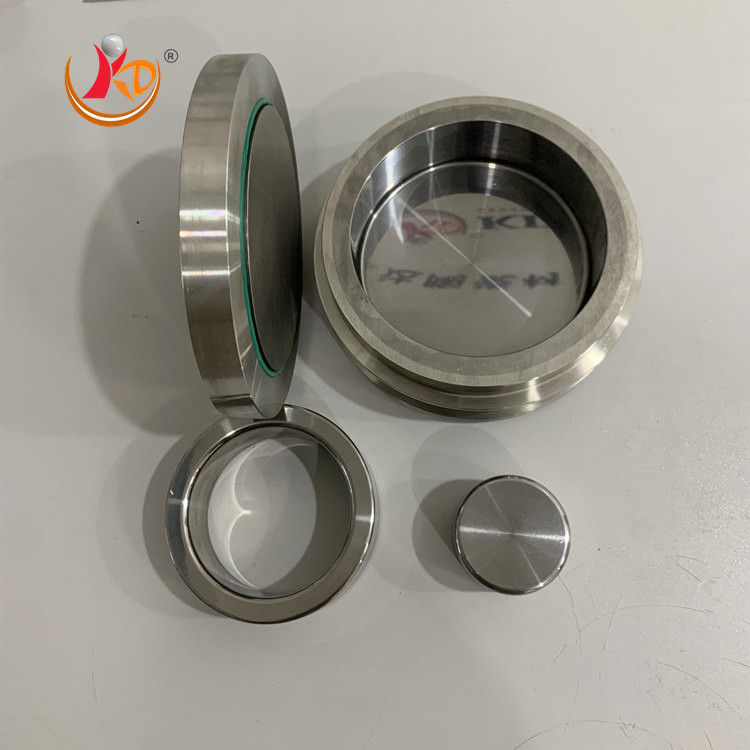

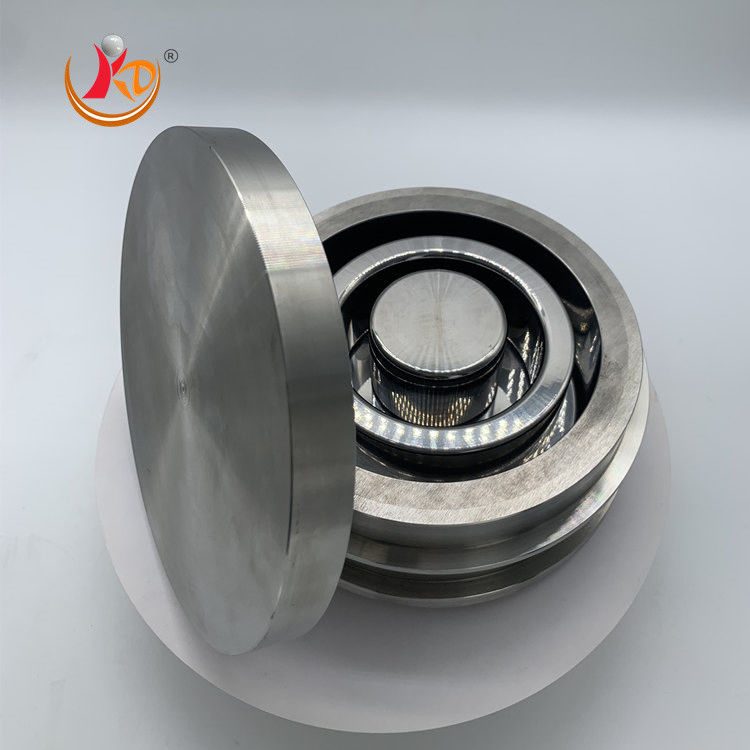

Image show of 100ml tungsten carbdie jar only fit in Retsch VIBRATORY DISC MILL RS 200
