Retsch Grinding Jars
>
|
|
| Place of Origin | Hunan, China |
| Brand Name | KINGDA |
| Model Number | used for RETSCH VIBRATORY DISC MILL RS 200 |

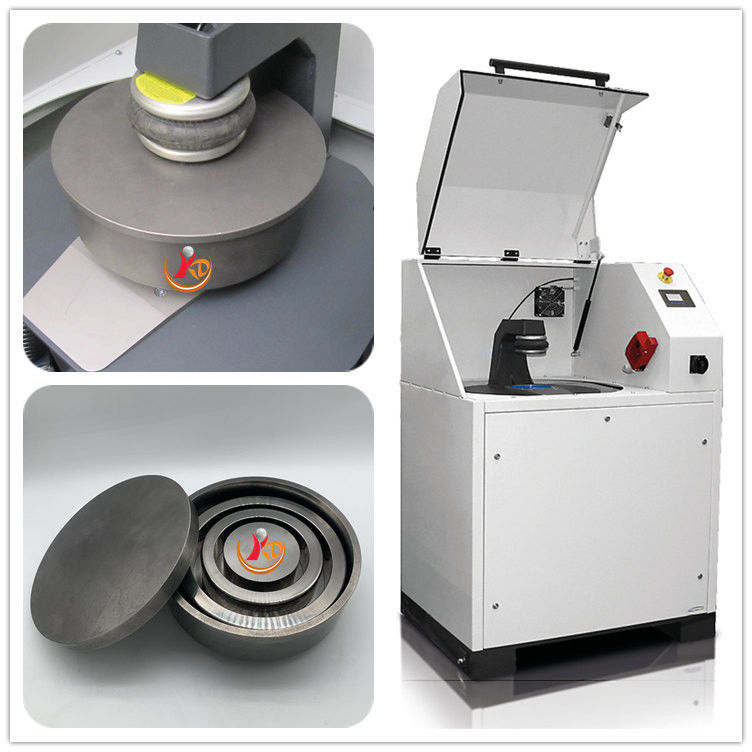

zirconium Oxide Grinding jar supplier for RETSCH VIBRATORY DISC MILL RS 200
The Zirconia oxide grinding sets have been developed especially for extreme test conditions such as high sample throughput and high mechanical stress. Features include.
Highly polished YSZ (Yttrium stabilized ZrO2) zirconium oxide jars, 60 times hardness of regular steel, highly wear-resistant and resistant to acid and solvents. The grinding jars are extensively applied on in the fields of Paint, Ink,Coating, Geology, Metallurgy, Electronics, Construction Material, Ceramics, Chemical Engineering, Light Industry, Medicine, Environmental Protection and so on. Each jar set includes grinding jar, jar lid, rubber sealing gasket and different sizes of mixed zirconium oxide grinding balls.
We have mass-produced various types of ball mill jars for Retsch and Fristch from Germany brand.
Retsch grinding jar: 50ml,80ml,125ml zirconium oxdie, agate, tungsten carbide grinding jar for Retsch planetary bal mill PM100,PM200,PM 400; 25ml,35ml,50ml zirconia oxide ,tungsten carbide jars for Retsch Mix mill MM 500; 50ml,100ml,250ml and 500ml zirconia oxide and tungsten carbide for Retsch vibratory disc ball mill RS200
Fritsch grinding jar: 250ml and 500ml zirconia,alumina,agate grinding jar for Fritsch P6.
We have inventory of all the above ball mill jars. Just let us talk more!
Technical indicators for Zirconia Ball mill jar
|
Composition (%) |
Specific Gravity (G/CM3) |
Bulk Density (Kg/L) |
Capacity (ML) |
|
ZrO2: 95± 0.2 Y2O3: 5± 0.2 |
≥ 6.02 | ≥3.7 |
25,50,80,100,125,250, 500,1000,2000,3000 |
| Zirconia oxide Jar Volume | OD (mm) | ID (mm) | Total Height (mm) |
| 25ml | 49 | 32 | 51 |
| 50ml | 55 | 38 | 67 |
| 100ml | 65 | 50 | 75 |
| 250ml | 92 | 74 | 88 |
| 500ml | 100 | 84 | 118 |
| 1000ml | 128 | 108 | 150 |
| 2.0L | 158 | 138 | 162 |
| 3.0L | 158 | 138 | 220 |
In order to prevent excessive abrasion, the hardness of the grinding jars used and of the
grinding balls must be higher than that of the material used. Normally, grinding jars and
grinding balls of the same material should be chosen.
| Recommendation For Matching Solutions About Mill Jars & Materials | |
| Categories of Materials | Recommended Mill Jars |
| Soil and other Materials which are not allowed with any impurity | Agate mill jar |
| Metal & nonmetal materials which are not allowed with any impurity | Zirconia mill jar |
| High hardness materials like diamond, tungsten carbide | Tungsten carbide mill jar |
| Strong add & alkali materials or other materials at high temperature | PTFE mill jar |
| Iron ore materials with lower impurity sensitivity | 304 Stainless steel mill jar |
| Pigment or other materials with later process under high temperature | Nylon mill jar |
| Aluminum materials like ceramic glaze | Corundum mill jar |
| Electronic materials like lithium battery | Polyurethane mill jar |
| Easily oxidized materials or some special materials which need to be protected under special atmosphere. | Vacuum mill jar |
| Matching Solutions for Mill Jars & Balls | |||||
| Items | Agate Balls | Alumina Balls | Stainless Steel Balls | Zirconia Balls | Tungsten Carbide Balls |
| Agate Mill jar | 1 | ||||
| Alumina/Corundum Mill Jar | 2 | 1 | 2 | ||
| Stainless Steel Mill Jar | 1 | ||||
| Zirconia Mill Jar | 2 | 1 | |||
| Nylon Mill Jar | 2 | 1 | |||
| PTFE Mill Jar | 1 | 2 | |||
| Polyurethane Mill Jar | 1 | 2 | |||
| Tungsten Carbide Mill Jar | 2 | 1 | |||
| 1 means: most suitable , 2 means: suitable | |||||

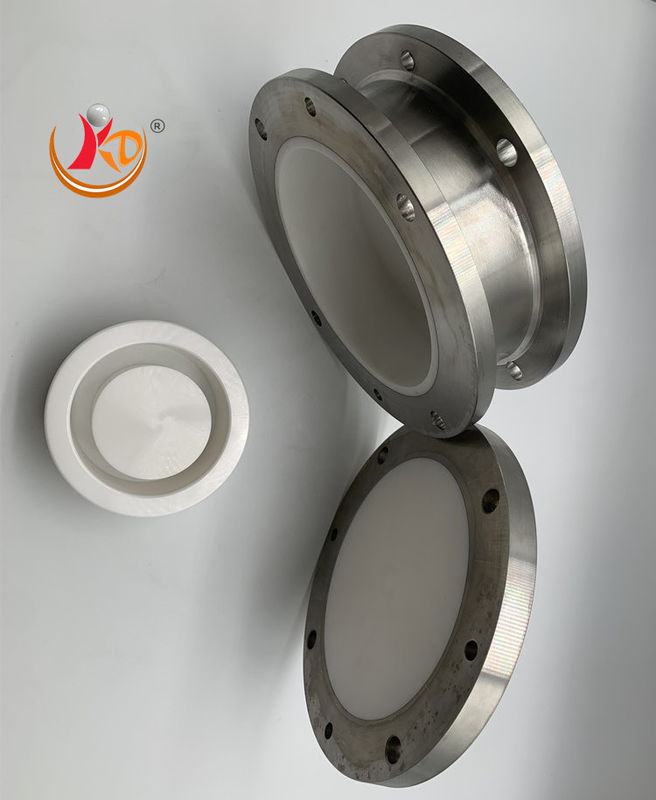

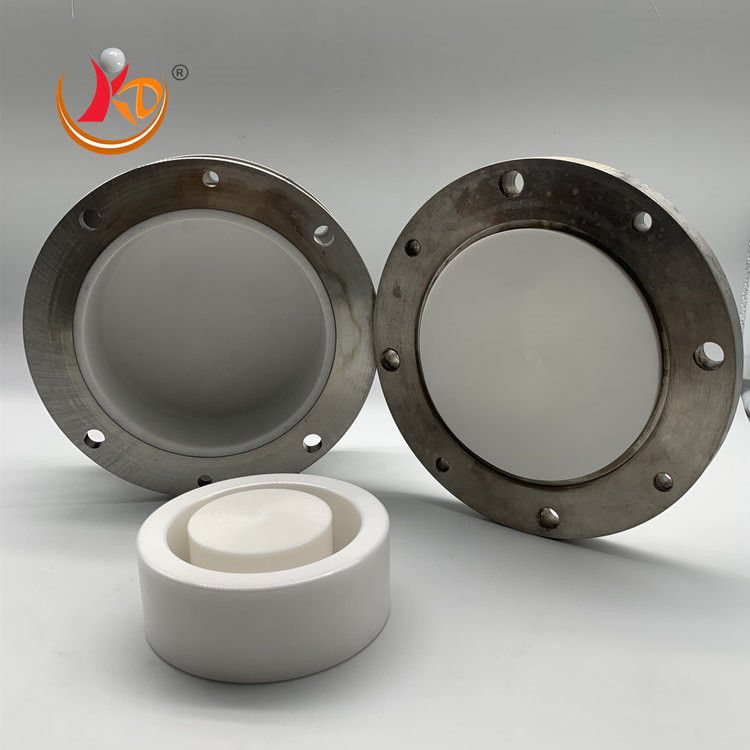

100cc zirconium oxide ball mill jar used for RETSCH VIBRATORY
DISC MILL RS 200 and RS300
