| Place of Origin | Hunan, China |
| Brand Name | KINGDA |
| Certification | CE ISO |
| Model Number | KD-GQM |

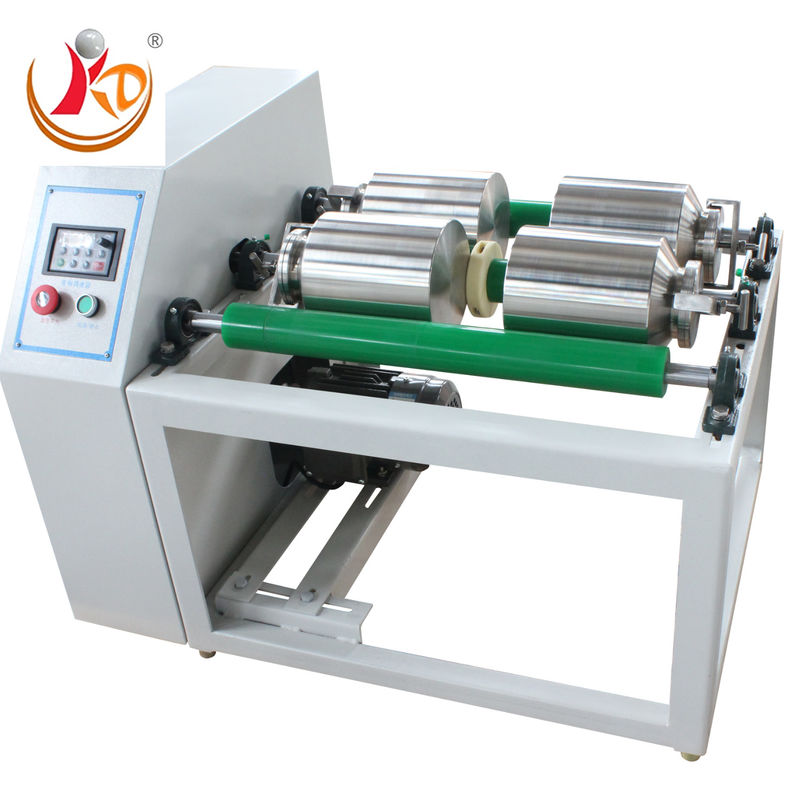

Kingda Lab Roller Ball Mill
Product Description————————
Here are some key features and components of a typical lab jar roller mill machine:
Rollers: The machine consists of two or more rollers that support and rotate the jars. The rollers can be adjustable to accommodate different jar sizes and ensure proper grinding.
Jars: The jars or containers hold the material to be ground and are placed on the rollers. They come in various sizes and materials, depending on the application and the type of material being processed.
Grinding Media: The grinding media, such as balls or rods, are placed inside the jars along with the material to be ground. The size and type of grinding media can vary depending on the desired particle size and the properties of the material.
Motor and Drive System: The machine is equipped with a motor and a drive system, which provide the necessary power to rotate the jars and the grinding media. The speed of rotation can often be adjusted to control the grinding process.
Controls and Safety Features: Lab jar roller mill machines may have controls to adjust the speed, timer functions, and other parameters. They may also incorporate safety features such as interlocks to prevent operation when the jars are not properly secured.
Working Principle————————
Commencing operation, the grinding media and materials enclosed within the cylinder rotate to a predetermined height.
Guided by gravity, they then descend from the inner walls of the tube. Material crushing occurs through a blend of grinding media impact, friction, and shearing from rolling and sliding movements.
This optimized procedure not only boosts efficiency, thus saving time and labor, but also guarantees smooth and effortless operation.
Specifications————————
| Category | Model No. | Power Supply | Rotate Speed |
Max Load Per Jar |
Dimensions & Net Weight |
| 2 Work Positions | GQM-2-5 | 220V-50Hz or 60Hz/0.75kw | 50-410 rpm | 35KGS | 950*480*685mm 59KGS |
| GQM-2-15 | 220V-50Hz or 60Hz/1.1kw | 40-365 rpm | 80KGS | 1130*550*690mm 80KGS | |
| GQM-2-20 | 220V-50Hz or 60Hz/1.5kw | 40-340 rpm | 120KGS | 1350*650*690mm 92KGS | |
| 4 Work Positions | GQM-4-5 Single layer | 220V-50Hz or 60Hz/0.75kw | 50-410 rpm | 35KGS | 950*660*690mm 70KGS |
| GQM-4-5 Double layer | 220V-50Hz or 60Hz/0.75kw | 50-410 rpm | 35KGS | 950*480*870mm 92KGS | |
| GQM-4-15 | 220V-50Hz or 60Hz/1.5kw | 40-365 rpm | 80KGS | 1130*800*690mm 95KGS | |
| GQM-4-20 | 380V-50Hz or 60Hz/2.2kw | 40-340 rpm | 120KGS | 1350*820*690mm 122KGS | |
| 8 Work Positions | GQM-8-5 | 220V-50Hz or 60Hz/1.5kw | 50-410 rpm | 35KGS | 950*660*960mm 106KGS |
| GQM-8-15 | 380V-50Hz or 60Hz/2.2kw | 40-365 rpm | 80KGS | 1130*800*960mm 152KGS |
Features————————
1.Multiple sample materials can be ground simultaneously.
2.It offers both intermittent and continuous operation modes.
3.Users can adjust timing to suit their requirements.
Accessories of Grinding Pots & Balls————————
Available grinding jars in full sizes: Zirconia ball mill jar, alumina ball mill jar, Tungsten ball mill, hard metal mill jar and etc.
Choose The Right Jar For Your Material
| Materials & Requests | Recommended Solutions |
| Soil materials and other materials which are not allowed with any impurity contamination | Agate mill jar |
| Metal or nonmetal which are not allowed with any impurity contamination | Zirconium mill jar |
| High hardness materials like diamond, tungsten carbide | Tungsten carbide mill jar |
| Strong add & alkali materials, or other materials under high temperature | PTFE mill jar |
| Iron ore materials or other materials with low impurity sensitivity | 304 stainless steel mill jar |
| Pigment or materials with later processing under high temperature | Nylon mill jar |
| Aluminum materials like ceramic glaze | Corundum mill jar |
| Electronic materials like lithium battery | Polyurethane mill jar |
| Description of Roll Mill Jars | Available Specifications |
| Normal ceramic roll mill jar | From 1.0L to 15L |
| 304 Stainless steel roll mill jar | From 0.5L to 20L |
| Corundum) roll mill jar | From 0.5L to 10L |
| Nylon roll mill jar | From 0.5L to 20L |
| Polyurethane roll mill jar | From 0.5L to 20L |
| PTFE/Teflon roll mill jar | From 0.5L to 20L |
| Tungsten carbide roll mill jar | From 250ml to 3L |
| Roll jacket (Stainless steel) | 0.5L to 3L |
| 316l Stainless steel roll mill jar | Customized |
Package & Shipping————————
Package Type:
PE Form + Cartons / Woodern cases;
Can be dispatched according to customr's requirement
Port:
Shanghai Port, Guangzhou Port, Tianjin Port, Qingdao port.
Delivery time:
Within 3-7 working days from the date of payment receipt
Factory————————
FAQ————————
1.Q: What are the roll mill jars available in your products?
A: Our available roll mill jars are alumina / zirconia ceramic, nylon, stainless steel, tungsten carbide, PTFE, polyurethane and so on.
2.Q: What is your terms of delivery?
A: FOB, CFR, CIF.
3.Q: Can you accept small quantity sample order before production?
A: Yes, we can offer sample for your testing first before production, but the customers have to pay the courier cost.
4.Q: What is your production time?
A: Generally, it will take 3-15 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
5.Q: What is your terms of payment?
A: T/T 30% as deposit, 70% balance against the copy of original B/L. Or 100% L/C at sight. We'll show you the photos of the products and the copy of original B/L before you pay the balance.
Our Service————————
1. We can produce other grinding balls as your need.
2. We test all the goods before delivery.
3. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
4. If you have any questions, please contact with us without any hesitation, we will reply you in 2 hours.
