| Place of Origin | Hunan, China |
| Brand Name | KINGDA |
| Certification | CE ISO |
| Model Number | KD-GQM |

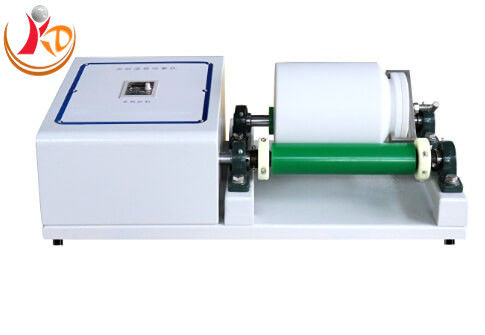

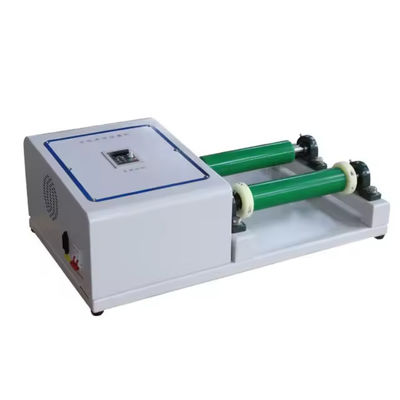

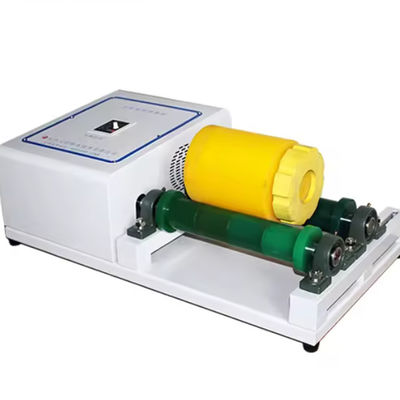

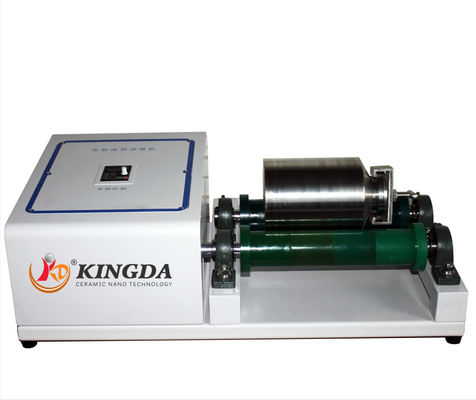

Kingda Lab Rolling Ball Mill
Product Description————————
1.You can set required speed based on experimental needs, maximum rotation speed can be achieved to 570 rpm (rotation speed of roller is not that of mill jar).
2.It can be matched with different roll mill jars in different sizes, and you can replace mill jar directly.
3.It can be adjusted by yourselves and can be matched with kinds of roll mill jars in different sizes. Simple and convenient for installation.
The Lab Jar Roller Mill Machine is an advanced laboratory equipment designed to facilitate efficient sample preparation, grinding, blending, and homogenization processes. It is a versatile machine that finds applications in various scientific fields, such as materials science, pharmaceutical research, chemical engineering, and more.
The machine consists of a sturdy base housing a horizontal roller mechanism. Multiple jars or containers made of high-quality materials, such as stainless steel or ceramic, are mounted on the roller. These jars are precisely aligned and spaced to ensure stable and consistent milling.
The Lab Jar Roller Mill Machine offers exceptional control over milling parameters, allowing researchers to adjust rotational speed, jar size, and milling duration. This flexibility enables customization based on specific sample requirements, ensuring optimal milling conditions and reliable results.
Working Principle————————
Upon commencement of operation, the grinding media and cylinder materials rotate to a predetermined height. Guided by gravity, they then descend from the tube wall. Material crushing occurs through grinding media impact, along with friction and shearing from rolling and sliding. This process not only saves time and labor but also guarantees ease of operation.
Specifications————————
| Category | Model No. | Power Supply | Rotate Speed |
Max Load Per Jar |
Dimensions & Net Weight |
| 1 Work Position | KD-QM-5 | 220V-50Hz or 110V single phase 0.37kw | 60-570 rpm | 35KGS | 730*415*260mm 32KGS |
| 1 Work Position | KD-QM-15 | 220V-50Hz or 110V single phase 0.37kw | 60-570 rpm | 80KGS | 845*435*270mm 45KGS |
Features————————
1.Multiple sample materials can be ground simultaneously.
2.It offers both intermittent and continuous operation modes.
3.Users can adjust timing to suit their requirements.
Accessories of Grinding Pots & Balls————————
Available grinding jars in full sizes:
Zirconia ball mill jar, alumina ball mill jar, Tungsten ball mill, hard metal mill jar and etc.
Choose The Right Jar For Your Material
| Materials & Requests | Recommended Solutions |
| Soil materials and other materials which are not allowed with any impurity contamination | Agate mill jar |
| Metal or nonmetal which are not allowed with any impurity contamination | Zirconium mill jar |
| High hardness materials like diamond, tungsten carbide | Tungsten carbide mill jar |
| Strong add & alkali materials, or other materials under high temperature | PTFE mill jar |
| Iron ore materials or other materials with low impurity sensitivity | 304 stainless steel mill jar |
| Pigment or materials with later processing under high temperature | Nylon mill jar |
| Aluminum materials like ceramic glaze | Corundum mill jar |
| Electronic materials like lithium battery | Polyurethane mill jar |
| Description of Roll Mill Jars | Available Specifications |
| Normal ceramic roll mill jar | From 1.0L to 15L |
| 304 Stainless steel roll mill jar | From 0.5L to 20L |
| Corundum) roll mill jar | From 0.5L to 10L |
| Nylon roll mill jar | From 0.5L to 20L |
| Polyurethane roll mill jar | From 0.5L to 20L |
| PTFE/Teflon roll mill jar | From 0.5L to 20L |
| Tungsten carbide roll mill jar | From 250ml to 3L |
| Roll jacket (Stainless steel) | 0.5L to 3L |
| 316l Stainless steel roll mill jar | Customized |
Package & Shipping————————
Package Type:
PE Form + Cartons / Woodern cases;
Can be dispatched according to customr's requirement
Port:
Shanghai Port, Guangzhou Port, Tianjin Port, Qingdao port.
Delivery time:
Within 3-7 working days from the date of payment receipt
Factory————————
FAQ————————
1.Q: What are the roll mill jars available in your products?
A: Our available roll mill jars are alumina / zirconia ceramic, nylon, stainless steel, tungsten carbide, PTFE, polyurethane and so on.
2.Q: What is your terms of delivery?
A: FOB, CFR, CIF.
3.Q: Can you accept small quantity sample order before production?
A: Yes, we can offer sample for your testing first before production, but the customers have to pay the courier cost.
4.Q: What is your production time?
A: Generally, it will take 3-15 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
5.Q: What is your terms of payment?
A: T/T 30% as deposit, 70% balance against the copy of original B/L. Or 100% L/C at sight. We'll show you the photos of the products and the copy of original B/L before you pay the balance.
