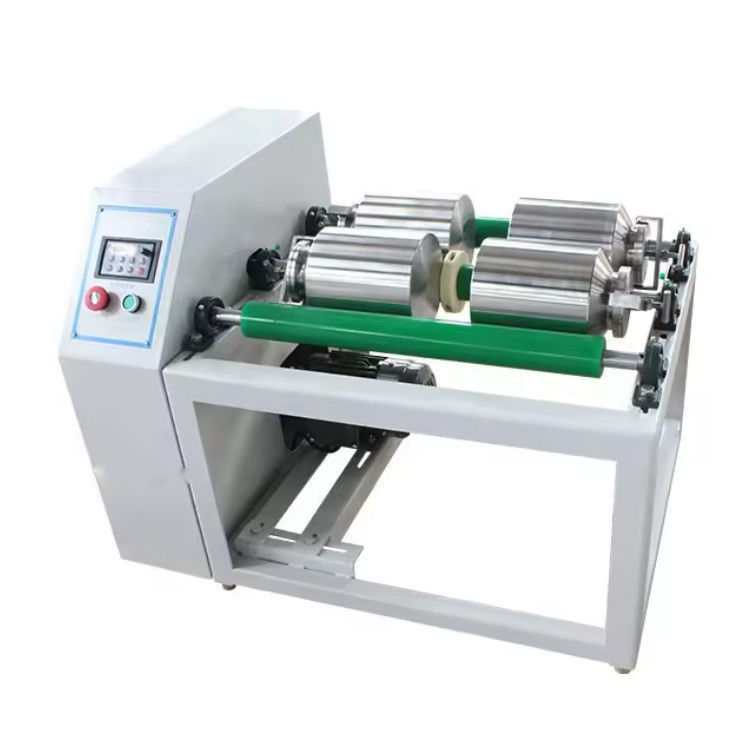

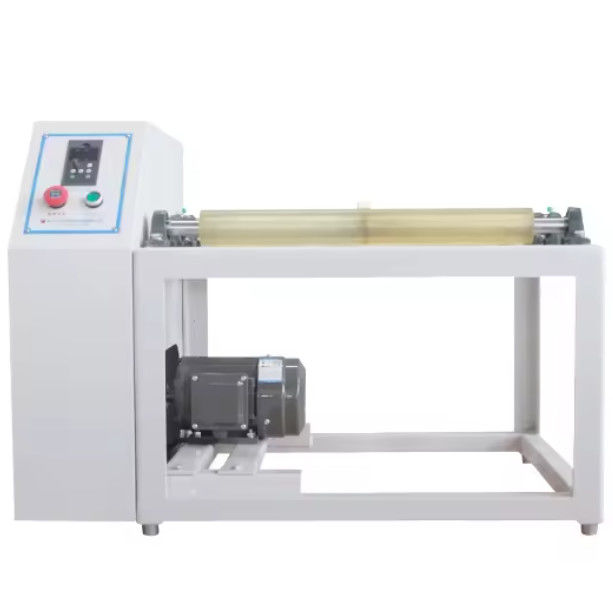

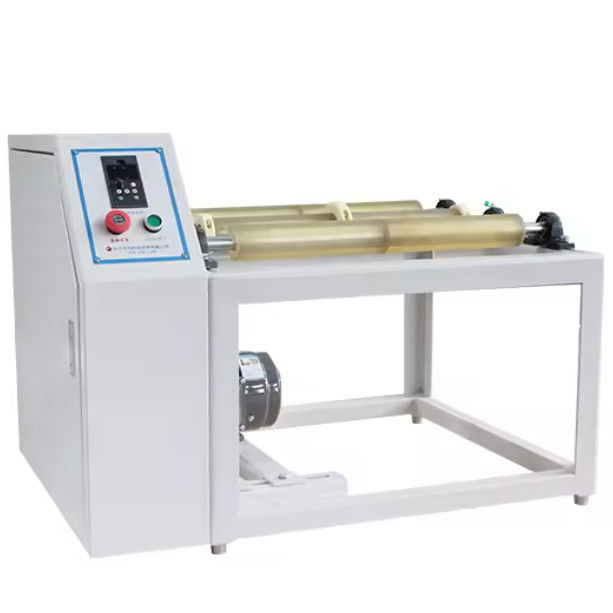

Kingda 4 Working Stations Jar Ball Mill Roll Grinder Laboratory Roller Ball Mill Used In Electronic Magnetic Materials
Product Description————————
1. Multi-Functional Design:
The Kingda 4 Working Stations Jar Ball Mill Roll Grinder is equipped with four working stations, allowing simultaneous grinding and processing of multiple samples, increasing laboratory efficiency.
2. Precision Grinding:
Our laboratory roller ball mill ensures precise grinding of electronic magnetic materials, enabling researchers to achieve accurate particle size reduction and material refinement.
3. Versatile Applications:
Suitable for various research applications, including material synthesis, mixing, and grinding, our roller ball mill is a versatile tool for laboratories working with electronic magnetic materials.
4. Uniform Mixing:
With its jar ball mill design, our product ensures uniform mixing of materials, crucial for achieving consistent and reliable results in material synthesis and processing.
5. Enhanced Control:
Featuring adjustable roller speed and programmable operation, our laboratory roller ball mill provides researchers with precise control over the grinding process, facilitating optimization of experimental parameters.
6. Durable Construction:
Built with high-quality materials and robust construction, the Kingda Jar Ball Mill Roll Grinder is designed to withstand heavy-duty use in laboratory settings, ensuring long-term reliability and performance.
Working Principle————————
The working principle of a laboratory rotary drum ball mill revolves around the movement and friction within the drum. Here's how it operates
Loading of Samples and Grinding Media:
Firstly, the desired solid samples and grinding media (typically metal balls) are placed inside the drum. These samples and media will undergo mixing and grinding within the drum.
Drum Rotation:
Once the samples and media are loaded, the drum begins to rotate. The rotation of the drum can be achieved through motor drive or manual operation. This rotational motion forms the basis of the equipment's operation, causing the samples and media to move inside the drum.
Friction and Collision between Samples and Media:
As the samples and media move with the rotation of the drum, friction and collisions occur between them. This friction and collision result in the crushing and mixing of sample particles, thus achieving the grinding and uniform mixing of the samples.
Effect of Gravity:
During the rotation of the drum, the samples and media also move downward along the drum wall due to gravity. This helps to increase the friction and collision between the samples and media, facilitating the grinding and mixing process.
Continuous Circulation Process:
The key to the working principle lies in the continuous rotation of the drum and the ongoing friction and collision between the samples and media. This cyclic process continues until the samples reach the desired particle size and mixing level.
Specifications————————
| Category | Model No. | Power Supply | Rotate Speed |
Max Load Per Jar |
Dimensions & Net Weight |
| 2 Work Positions | GQM-2-5 | 220V-50Hz or 60Hz/0.75kw | 50-410 rpm | 35KGS | 950*480*685mm 59KGS |
| GQM-2-15 | 220V-50Hz or 60Hz/1.1kw | 40-365 rpm | 80KGS | 1130*550*690mm 80KGS | |
| GQM-2-20 | 220V-50Hz or 60Hz/1.5kw | 40-340 rpm | 120KGS | 1350*650*690mm 92KGS | |
| 4 Work Positions | GQM-4-5 Single layer | 220V-50Hz or 60Hz/0.75kw | 50-410 rpm | 35KGS | 950*660*690mm 70KGS |
| GQM-4-5 Double layer | 220V-50Hz or 60Hz/0.75kw | 50-410 rpm | 35KGS | 950*480*870mm 92KGS | |
| GQM-4-15 | 220V-50Hz or 60Hz/1.5kw | 40-365 rpm | 80KGS | 1130*800*690mm 95KGS | |
| GQM-4-20 | 380V-50Hz or 60Hz/2.2kw | 40-340 rpm | 120KGS | 1350*820*690mm 122KGS | |
| 8 Work Positions | GQM-8-5 | 220V-50Hz or 60Hz/1.5kw | 50-410 rpm | 35KGS | 950*660*960mm 106KGS |
| GQM-8-15 | 380V-50Hz or 60Hz/2.2kw | 40-365 rpm | 80KGS | 1130*800*960mm 152KGS |
Features————————
Enhanced Grinding Efficiency: Our Lab Jar Roller Mill facilitates efficient grinding with its precisely engineered roller design, ensuring thorough and uniform mixing of materials.
Versatile Jar Compatibility: The Jar Ball Mill Grinding feature of our product accommodates various sizes of ball mill jars, offering flexibility for different laboratory applications.
Consistent Results: With its roller ball mill laboratory design, our product delivers consistent and reproducible results, ideal for research and development purposes.
Robust Construction: Built to withstand rigorous laboratory use, our Lab Jar Roller Mill boasts a durable drum and sturdy ball mill jar, ensuring longevity and reliability.
Easy Operation: Designed for user convenience, our Lab Jar Roller Mill offers intuitive operation, making it suitable for both experienced researchers and newcomers alike.
Accessories of Grinding Pots & Balls————————
Available grinding jars in full sizes:
Zirconia ball mill jar, alumina ball mill jar, Agate ball mill jar, Tungsten ball mill, hard metal mill jar and etc.
Package & Shipping————————
Package Type:
PE Form + Cartons / Woodern cases;
Can be dispatched according to customr's requirement
Port:
Shanghai Port, Guangzhou Port, Tianjin Port, Qingdao port.
Delivery time:
Within 3-7 working days from the date of payment receipt
Factory————————
FAQ————————
1.Q: What are the roll mill jars available in your products?
A: Our available roll mill jars are alumina / zirconia ceramic, nylon, stainless steel, tungsten carbide, PTFE, polyurethane and so on.
2.Q: What is your terms of delivery?
A: FOB, CFR, CIF.
3.Q: Can you accept small quantity sample order before production?
A: Yes, we can offer sample for your testing first before production, but the customers have to pay the courier cost.
4.Q: What is your production time?
A: Generally, it will take 3-15 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
5.Q: What is your terms of payment?
A: T/T 30% as deposit, 70% balance against the copy of original B/L. Or 100% L/C at sight. We'll show you the photos of the products and the copy of original B/L before you pay the balance.
Our Service————————
1. We can produce other grinding balls as your need.
2. We test all the goods before delivery.
3. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
4. If you have any questions, please contact with us without any hesitation, we will reply you in 2 hours.
ABOUT KINGDA————————
1. HUNAN KINGDA CERAMIC TECHNOLOGY CO.,LTD is a manufacturer of the Grinding Media Ball, Grinding Jars, Zirconium Dioxide, Zirconia structures, etc.
2. "Quality Is in the First Position forever", we have gained a high reputation and good recognition from a lot of domestic and overseas customers such as University of Oxford, Lough borough University, Peking University, Tsinghua University, etc.
3. We promise that we would make great efforts to provide high quality grinding products and best services for all customers in the coming years.
4. Nowadays, KINGDA CERAMIC MATERIALS has gained great reputation from our business partners. We will continue to contribute the best to realize mutual benefit and sustainability.
5. We appreciate your interest and support in the efforts and passion of KINGDA CERAMIC, the company of Human Technology.
