Jar Rolling Mill
>
|
|
| Place of Origin | Hunan, China |
| Brand Name | KINGDA |
| Certification | CE ISO |
| Model Number | GQM-1-15L |

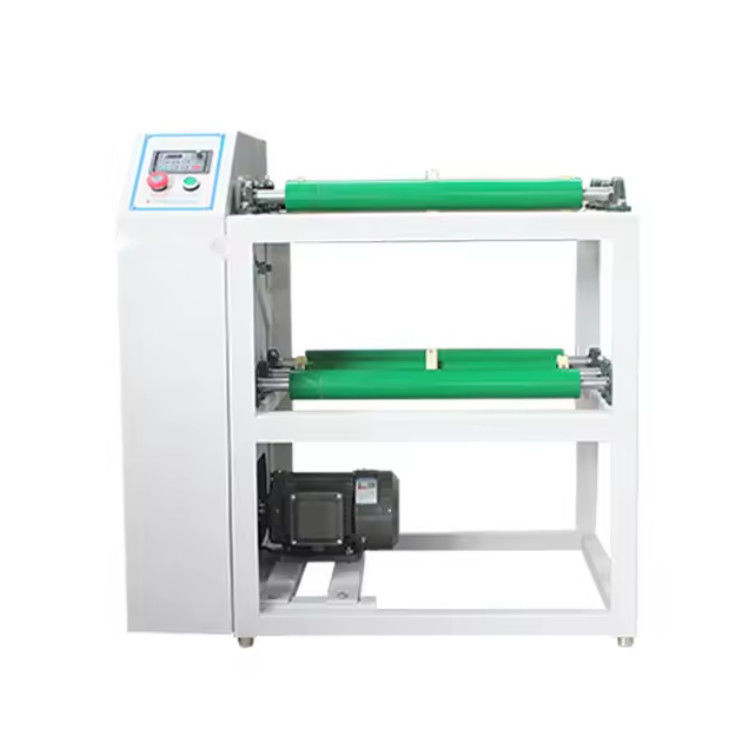

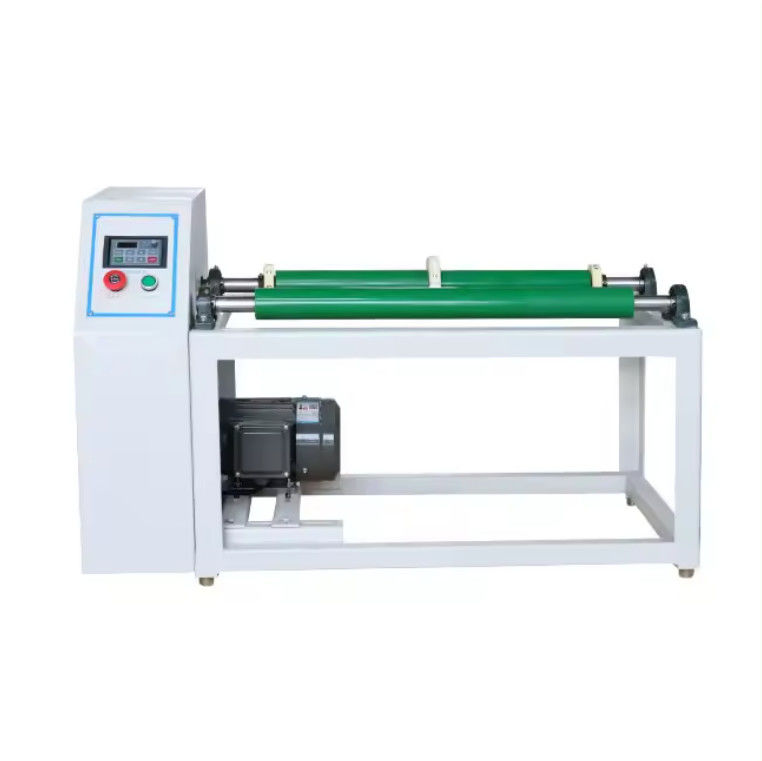

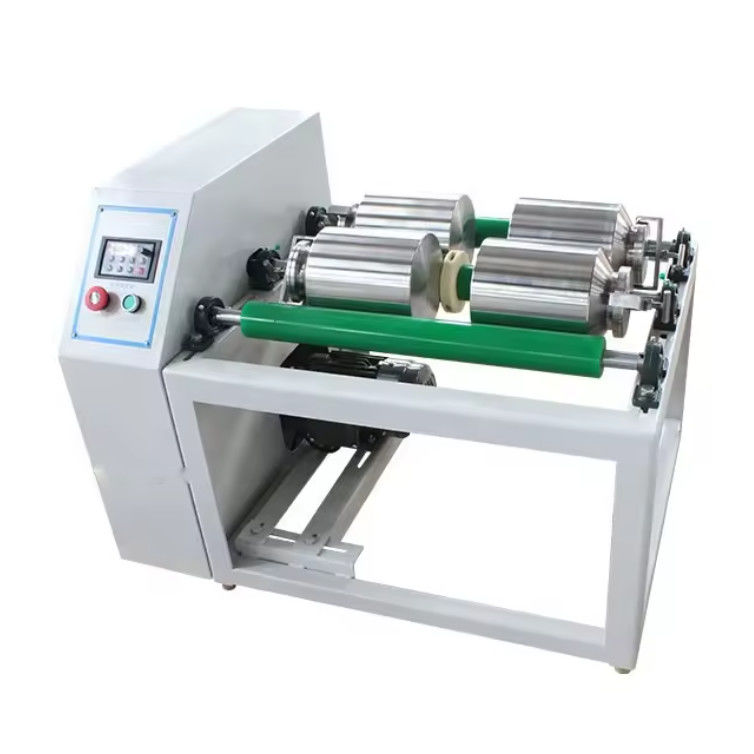

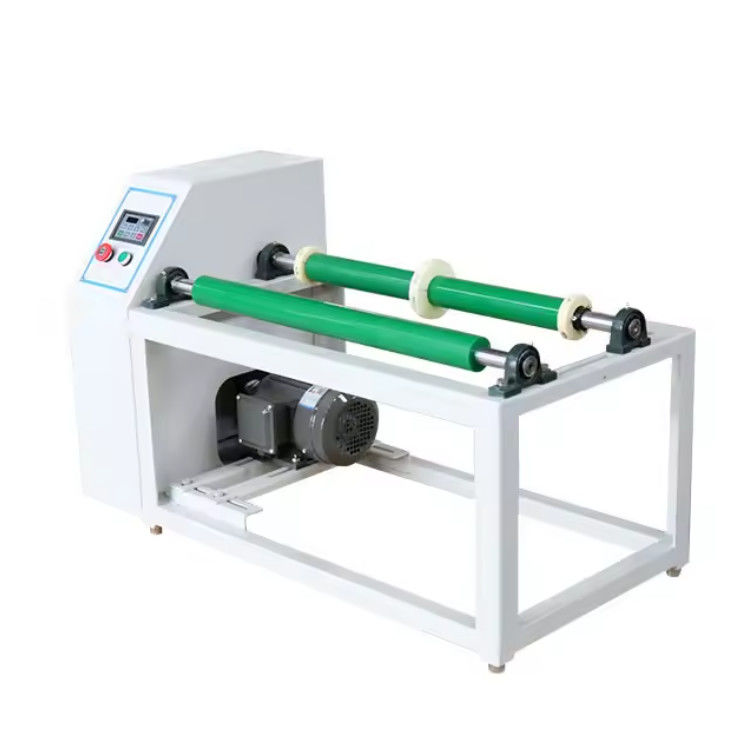

Kingda Ceramic Lab Jar Mill /Roller Jar Mill Machine Roller Ball Mill/ Small Rolling Mill
Product Description————————
1. Pharmaceutical Mixing:
Attain unmatched precision in pharmaceutical blending for optimum drug formulation with our advanced GQM-1-5 Lab Jar Milling Machine. Enhance your laboratory workflows further by integrating our optional digital controls for increased efficiency and seamless operation.
2. Food Industry Homogenization:
Set a new standard for consistency in food manufacturing processes using the homogenization capabilities of our Lab Jar Milling Machine. Leverage our specialized attachments tailored for food industry needs, ensuring uniform outcomes in every batch produced.
3. Cosmetic Product Development:
Transform your cosmetic formulation journey with our Lab Jar Milling Machine, delivering consistent texture and blend for a range of products from sumptuous creams to velvety lotions. Explore our assortment of interchangeable jars and mixing blades, designed to cater to various cosmetic formulation requirements.
4. Paint and Coating Manufacturing:
Elevate your paint and coating production to unprecedented levels of quality with our Lab Jar Milling Machine's precise milling capabilities. Witness superior color dispersion and refined finishes by customizing milling parameters and utilizing advanced agitation features.
5. Ceramic Material Synthesis:
Unleash the potential of ceramic material synthesis in your research endeavors with our Lab Jar Milling Machine, ensuring uniformity across experiments. Expand your exploration with our diverse selection of jar materials and sizes, providing precise control over particle distribution and composition.
Working Principle————————
As the machine initiates operation, both the grinding media and the materials within the cylinder rotate to a specific elevation.
Subsequently, influenced by gravity, they descend from the tube wall.
The materials undergo crushing via the impact of the grinding media, as well as friction and shearing from their rolling and sliding.
This process not only saves time and labor but also ensures ease of operation.
Specifications————————
| Category | Model No. | Power Supply | Rotate Speed |
Max Load Per Jar |
Dimensions & Net Weight |
| 2 Work Positions | GQM-2-5 | 220V-50Hz or 60Hz/0.75kw | 50-410 rpm | 35KGS | 950*480*685mm 59KGS |
| GQM-2-15 | 220V-50Hz or 60Hz/1.1kw | 40-365 rpm | 80KGS | 1130*550*690mm 80KGS | |
| GQM-2-20 | 220V-50Hz or 60Hz/1.5kw | 40-340 rpm | 120KGS | 1350*650*690mm 92KGS | |
| 4 Work Positions | GQM-4-5 Single layer | 220V-50Hz or 60Hz/0.75kw | 50-410 rpm | 35KGS | 950*660*690mm 70KGS |
| GQM-4-5 Double layer | 220V-50Hz or 60Hz/0.75kw | 50-410 rpm | 35KGS | 950*480*870mm 92KGS | |
| GQM-4-15 | 220V-50Hz or 60Hz/1.5kw | 40-365 rpm | 80KGS | 1130*800*690mm 95KGS | |
| GQM-4-20 | 380V-50Hz or 60Hz/2.2kw | 40-340 rpm | 120KGS | 1350*820*690mm 122KGS | |
| 8 Work Positions | GQM-8-5 | 220V-50Hz or 60Hz/1.5kw | 50-410 rpm | 35KGS | 950*660*960mm 106KGS |
| GQM-8-15 | 380V-50Hz or 60Hz/2.2kw | 40-365 rpm | 80KGS | 1130*800*960mm 152KGS |
Features————————
1. More kinds of sample material can be ground each time.
2. It can be operated intermittently or continuously.
3. Timing can be set according to users’ needs.
Accessories of Grinding Pots & Balls————————
Available grinding jars in full sizes:
Zirconia ball mill jar, alumina ball mill jar, Agate ball mill jar, Tungsten ball mill, hard metal mill jar and etc.
Package & Shipping————————
Package Type:
PE Form + Cartons / Woodern cases;
Can be dispatched according to customr's requirement
Port:
Shanghai Port, Guangzhou Port, Tianjin Port, Qingdao port.
Delivery time:
Within 3-7 working days from the date of payment receipt
Factory————————
FAQ————————
1.Q: What are the roll mill jars available in your products?
A: Our available roll mill jars are alumina / zirconia ceramic, nylon, stainless steel, tungsten carbide, PTFE, polyurethane and so on.
2.Q: What is your terms of delivery?
A: FOB, CFR, CIF.
3.Q: Can you accept small quantity sample order before production?
A: Yes, we can offer sample for your testing first before production, but the customers have to pay the courier cost.
4.Q: What is your production time?
A: Generally, it will take 3-15 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
5.Q: What is your terms of payment?
A: T/T 30% as deposit, 70% balance against the copy of original B/L. Or 100% L/C at sight. We'll show you the photos of the products and the copy of original B/L before you pay the balance.
Our Service————————
1. We can produce other grinding balls as your need.
2. We test all the goods before delivery.
3. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
4. If you have any questions, please contact with us without any hesitation, we will reply you in 2 hours.
ABOUT KINGDA————————
1. HUNAN KINGDA CERAMIC TECHNOLOGY CO.,LTD is a manufacturer of the Grinding Media Ball, Grinding Jars, Zirconium Dioxide, Zirconia structures, etc.
2. "Quality Is in the First Position forever", we have gained a high reputation and good recognition from a lot of domestic and overseas customers such as University of Oxford, Lough borough University, Peking University, Tsinghua University, etc.
3. We promise that we would make great efforts to provide high quality grinding products and best services for all customers in the coming years.
4. Nowadays, KINGDA CERAMIC MATERIALS has gained great reputation from our business partners. We will continue to contribute the best to realize mutual benefit and sustainability.
5. We appreciate your interest and support in the efforts and passion of KINGDA CERAMIC, the company of Human Technology.
