Zirconia Balls
>
|
|
| Place of Origin | Hunan, China |
| Brand Name | Kingda |
| Model Number | 0.1-50MM |

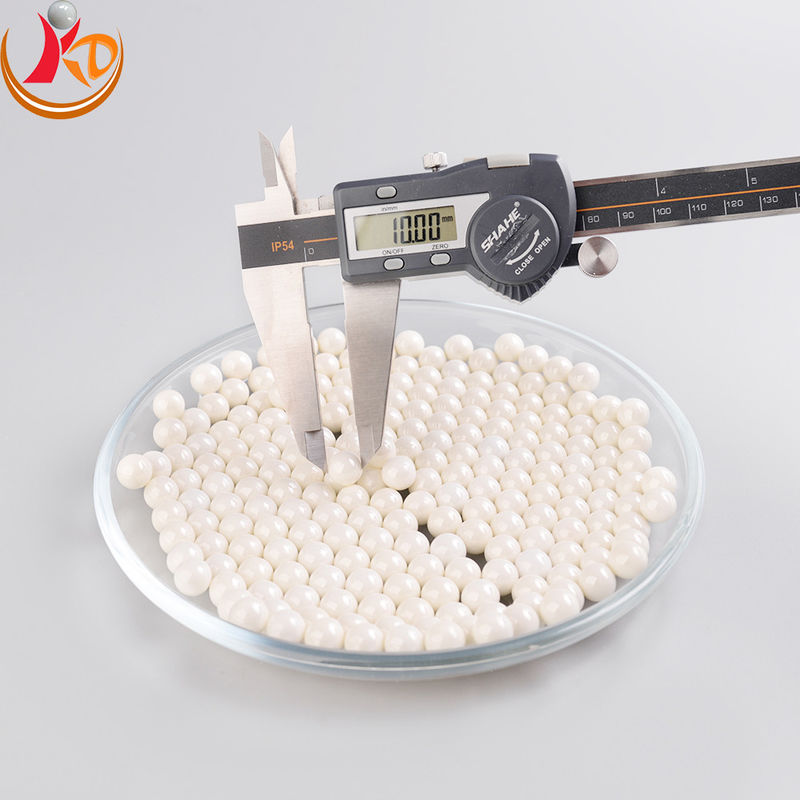

Zirconium Customized Ceramic Grinding media
Product Description————————
Elevate your grinding processes with our Zirconium Silicate Customized Ceramic Grinding Media Spheres.
Meticulously crafted for precision grinding applications, these spheres offer exceptional hardness, wear resistance, and customization to meet your specific grinding needs.
1. Zirconia grinding beads is also called Zirconia grinding ball or Zirconia ceramic ball or Zirconium bead or ultrafine grinding media.
2. Zirconia material has advantages of high hardness, high strength, high tenacity, high wear resistance and good corrosion resistance which is widely applied in fields of ceramics, fire proofing material, machinery, electronic, photics, Aeronautics and astronautics, biology and chemicals and etc.
3. It owns gloss of pearl and smooth surface and is the best ball among all grinding media.
Application————————
1. Particularly suitable for vertical stirring mills, horizontal roller ball mills, vibrating mills and various high linear, speed pin- type sand mills.
2. For wet or dry ultrafine dispersion and grinding of pastes and powders without contamination.
3. Perfect grinding media with good flatness, smooth surface, bright,high density and high strength.
4. Wear and corrosion resistant product: coating, textile, pigment, dyeing.
5. High strength, high tenacity product: magnetic material, piezoelectric ceramics, dielectric ceramics.
6. Pollution prevention: medicine, food, cosmetics.
7. Ceramics: electronic ceramics, refractory ceramics, structural ceramics.
Properties and technique parameters————————
| Performance | Unit | Parameter |
| Component | Wt% | 95±0.2%Zro2+5±0.2%Y2O3 |
| Density | g/cm3 | 6.00-6.05 |
| Hardness | GPa | >11 |
| Elasticity Modulus | GPa | 200 |
| Thermal conductivity | W/m.k | 3 |
| Coefficient of thermal Expansion | 10*10-6/ºC(20-400) | 9.6 |
| Crush Strength | KN | ≥20(φ7mm) |
| Bending toughness | MPam1/2 | 8 |
Features————————
Zirconium Silicate Composition:
Crafted from high-quality zirconium silicate, these ceramic grinding media spheres ensure optimal hardness and wear resistance for effective and precise grinding.
Customized Design:
Tailored to your specific requirements, these grinding media spheres offer customization options to meet the unique demands of your grinding applications.
Optimal Size for Precision Grinding:
Available in an optimal size range, these ceramic spheres contribute to efficient and precise grinding processes, providing controlled particle size reduction for various materials.
Versatile Industrial Applications:
Suited for a variety of industrial applications, including ceramics production, minerals processing, and more, providing a versatile solution for different industries.
Chemical Stability:
The zirconium silicate composition ensures chemical stability, making these spheres suitable for exposure to various chemicals encountered in grinding processes.
Matching Machine——————
Available grinding jars in full sizes:
Zirconia ball mill jar, alumina ball mill jar, Agate ball mill jar, Tungsten ball mill, hard metal mill jar and etc.
Package & Shipping————————
Package Type:
25KG/drum / 500-1000KG on pallet with shrink wrapped
Port:
Shanghai Port, Guangzhou Port, Tianjin Port, Qingdao port.
Delivery time:
Within 3-7 working days from the date of payment receipt
Factory————————
QC————————
Laser Particle Size Analyzer Vickers hardness tester Microscopic detection Testing Meter of Powder
Specific Area
FAQ————————
1.Q: What is the size in your products?
A: Our common size is 0.8-50mm. We can also produce according to your request.
2.Q: What is your terms of delivery?
A: FOB, CFR, CIF.
3.Q: Can you accept small quantity sample order before production?
A: Yes, we can offer sample for your testing first before production, but the customers have to pay the courier cost.
4.Q: What is your production time?
A: Generally, it will take 3-7 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
5.Q: What is your terms of payment?
A: T/T 30% as deposit, 70% balance against the copy of original B/L. Or 100% L/C at sight. We'll show you the photos of the products and the copy of original B/L before you pay the balance.
Our Service————————
1. We can produce other grinding balls as your need.
2. We test all the goods before delivery.
3. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
4. If you have any questions, please contact with us without any hesitation, we will reply you in 2 hours.
ABOUT KINGDA————————
1. HUNAN KINGDA CERAMIC TECHNOLOGY CO.,LTD is a manufacturer of the Grinding Media Ball, Grinding Jars, Zirconium Dioxide, Zirconia structures, etc.
2. "Quality Is in the First Position forever", we have gained a high reputation and good recognition from a lot of domestic and overseas customers such as University of Oxford, Lough borough University, Peking University, Tsinghua University, etc.
3. We promise that we would make great efforts to provide high quality grinding products and best services for all customers in the coming years.
4. Nowadays, KINGDA CERAMIC MATERIALS has gained great reputation from our business partners. We will continue to contribute the best to realize mutual benefit and sustainability.
5. We appreciate your interest and support in the efforts and passion of KINGDA CERAMIC, the company of Human Technology.
