Kingda 0.72KW/220V Lab Roll Ball Mill for Grinding Pigment Factory Outlet
Product Description————————
1. Rolling Jar Mill is a kind of powder milling equipment used for ultra-fine grinding and mixing for laboratory and small batch production, which is also called roller ball mill with more than two working positions.
2. The machine is preferred equipment for scientific research, education, experiment and production due to its advantage such as elegant and fashion design, compact structure, easy operation, high efficiency, and uniform granularity.
3. It is widely applied to industries of electronic materials, magnetic materials, biological medicine, ceramic glaze, mental powder, nonmetallic minerals, new materials and etc.

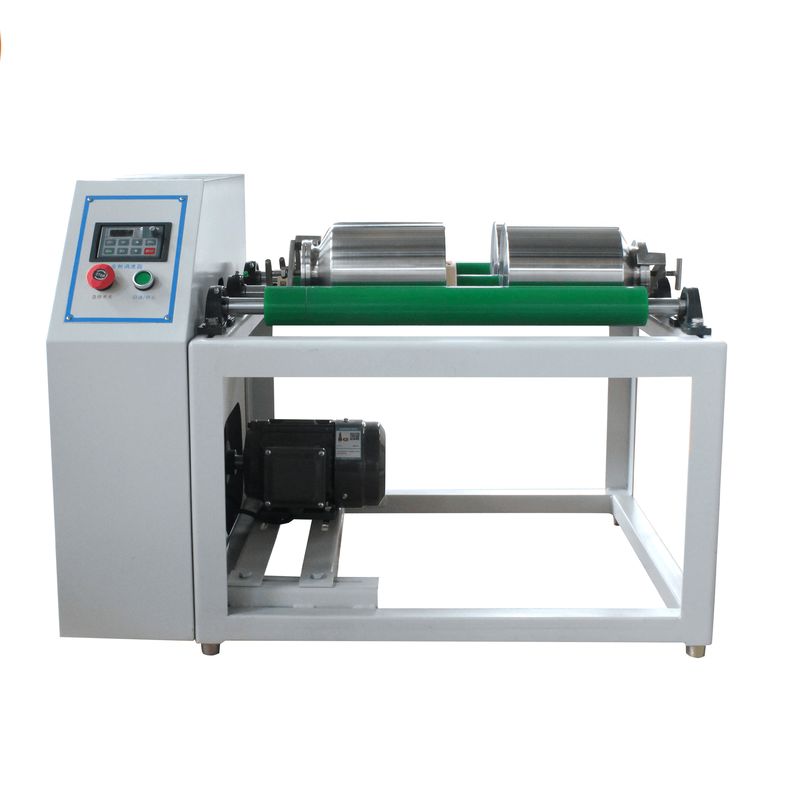

4. Optimal design of rotating speed is adopted in the machine. Mill jar is dragged to rotate by rubber roller and balls inside the jar make incline flow movement and disperse materials.
Working Principle————————
When the machine starts to work, the grinding media and the materials of the cylinder are rotated to a certain height.
Due to the gravity, they fall down from the tube wall.
The materials are crushed by impact action of the grinding media, and friction and shearing action of grinding media’s rolling and sliding.
It not only saves time and labor, but is easy for operation.
Specifications————————
| Category | Model No. | Power Supply | Rotate Speed |
Max Load Per Jar |
Dimensions & Net Weight |
| 2 Work Positions | GQM-2-5 | 220V-50Hz or 60Hz/0.75kw | 50-410 rpm | 35KGS | 950*480*685mm 59KGS |
| GQM-2-15 | 220V-50Hz or 60Hz/1.1kw | 40-365 rpm | 80KGS | 1130*550*690mm 80KGS | |
| GQM-2-20 | 220V-50Hz or 60Hz/1.5kw | 40-340 rpm | 120KGS | 1350*650*690mm 92KGS | |
| 4 Work Positions | GQM-4-5 Single layer | 220V-50Hz or 60Hz/0.75kw | 50-410 rpm | 35KGS | 950*660*690mm 70KGS |
| GQM-4-5 Double layer | 220V-50Hz or 60Hz/0.75kw | 50-410 rpm | 35KGS | 950*480*870mm 92KGS | |
| GQM-4-15 | 220V-50Hz or 60Hz/1.5kw | 40-365 rpm | 80KGS | 1130*800*690mm 95KGS | |
| GQM-4-20 | 380V-50Hz or 60Hz/2.2kw | 40-340 rpm | 120KGS | 1350*820*690mm 122KGS | |
| 8 Work Positions | GQM-8-5 | 220V-50Hz or 60Hz/1.5kw | 50-410 rpm | 35KGS | 950*660*960mm 106KGS |
| GQM-8-15 | 380V-50Hz or 60Hz/2.2kw | 40-365 rpm | 80KGS | 1130*800*960mm 152KGS |
Features————————
1. More kinds of sample material can be ground each time.
2. It can be operated intermittently or continuously.
3. Timing can be set according to users’ needs.
Accessories of Grinding Pots & Balls————————
Available grinding jars in full sizes:
Zirconia ball mill jar, alumina ball mill jar, Agate ball mill jar, Tungsten ball mill, hard metal mill jar and etc.
Package & Shipping————————
Package Type:
PE Form + Cartons / Woodern cases;
Can be dispatched according to customr's requirement
Port:
Shanghai Port, Guangzhou Port, Tianjin Port, Qingdao port.
Delivery time:
Within 3-7 working days from the date of payment receipt

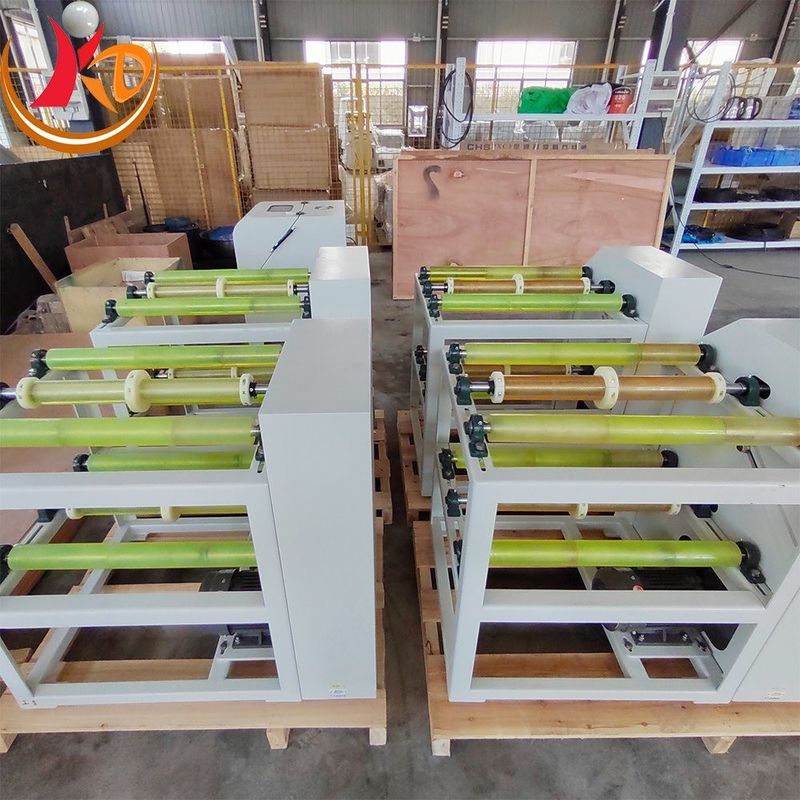

Factory————————
FAQ————————
1.Q: What are the roll mill jars available in your products?
A: Our available roll mill jars are alumina / zirconia ceramic, nylon, stainless steel, tungsten carbide, PTFE, polyurethane and so on.
2.Q: What is your terms of delivery?
A: FOB, CFR, CIF.
3.Q: Can you accept small quantity sample order before production?
A: Yes, we can offer sample for your testing first before production, but the customers have to pay the courier cost.
4.Q: What is your production time?
A: Generally, it will take 3-15 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
5.Q: What is your terms of payment?
A: T/T 30% as deposit, 70% balance against the copy of original B/L. Or 100% L/C at sight. We'll show you the photos of the products and the copy of original B/L before you pay the balance.
Our Service————————
1. We can produce other grinding balls as your need.
2. We test all the goods before delivery.
3. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
4. If you have any questions, please contact with us without any hesitation, we will reply you in 2 hours.
ABOUT KINGDA————————
1. HUNAN KINGDA CERAMIC TECHNOLOGY CO.,LTD is a manufacturer of the Grinding Media Ball, Grinding Jars, Zirconium Dioxide, Zirconia structures, etc.
2. "Quality Is in the First Position forever", we have gained a high reputation and good recognition from a lot of domestic and overseas customers such as University of Oxford, Lough borough University, Peking University, Tsinghua University, etc.
3. We promise that we would make great efforts to provide high quality grinding products and best services for all customers in the coming years.
4. Nowadays, KINGDA CERAMIC MATERIALS has gained great reputation from our business partners. We will continue to contribute the best to realize mutual benefit and sustainability.
5. We appreciate your interest and support in the efforts and passion of KINGDA CERAMIC, the company of Human Technology.
