| Place of Origin: | Hunan, China |
|---|---|
| Brand Name: | Kingda |
| Certification: | CE ISO |
| Minimum Order Quantity: | 1 Set |
| Price: | Negotiable |
| Packaging Details: | PE Foam + Cartons / Wooden cases |
| Delivery Time: | 3-7 Days |
| Payment Terms: | L/C, D/A, D/P, T/T, Western Union |
| Supply Ability: | 1000 Set / Month |
| Working Style: | High-speed Universal | Power Source:: | Electricity |
|---|---|---|---|
| Power Supply:: | 110V-60Hz Or 220-50Hz 0.32kw | Matchable Jar Volume:: | 0.4-100L |
| Feeding Size (mm): | 1 - 100 Mm | Rotation Speed:: | 90-870 Rpm |
| Application: | Grinding / Polishing / Despersing | Warranty: | 1 Year |
| After Warranty Service:: | Video Technical Support | Packing: | PE Foam + Cartons / Wooden Cases |
| Customization:: | Available |

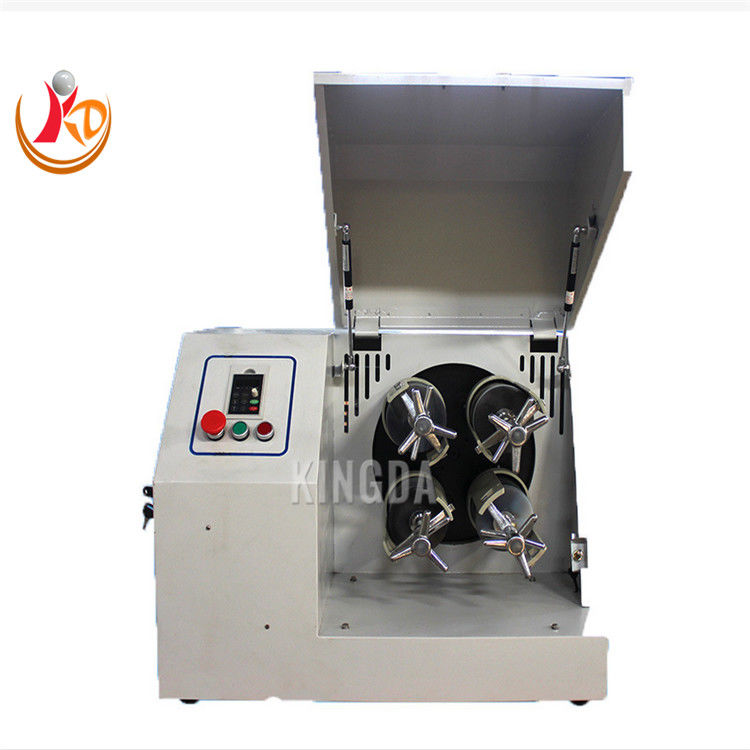

Factory Outlet Horizental Planetary Grinding Ball Mill Machine Smal Ball Mill
Product Description————————
1. The Vertical Planetary Ball Mill stands as an indispensable device for high-tech materials mixing, fine grinding, sample making, new product development, and small batch production.
2. With its small volume, high efficiency, low noise, and versatile features, this mill is the ideal equipment for research institutions, universities, and enterprise laboratories seeking precision and reliability in sample preparation.
3. 0.4L planetary ball milling machine has four ball grinding tanks installed on one turnplate. When the turnplate rotates, the tank axis makes planetary movements and the balls in the tanks grinds and mixes samples in high speed movement.
4. The product can smash and blend various products of different materials and granularity with dry or wet methods. Minimum granularity of grinded products can be as small as 0.1 micron (i.e.) 1.0×10-4mm)
5. It is widely used in the fields of Geology, Mining, Metallurgy, Electronics, Construction Material, Ceramics, Chemical Engineering, Light Industry Medicine, Environmental Protection etc.
6. Designed with safety in mind, our equipment adheres to the highest standards. The 220V power supply ensures stable performance, and the compact design minimizes the risk of accidents.
Application————————
1. Materials Research and Development: The Vertical Planetary Ball Mill plays a crucial role in the mixing, fine grinding, and new product development of high-tech materials. Researchers can utilize its ability for small batch production, swiftly obtaining samples with high purity and precise particle size.
2. Laboratory Sample Preparation: As an ideal laboratory equipment, the Vertical Planetary Ball Mill is employed in universities, research institutions, and enterprise laboratories for sample preparation. Its small volume and high efficiency ensure the acquisition of four samples in a single experiment, enhancing experimental efficiency.
Technical Specifications————————
| Drive Mode | gear drive / belt drive |
|---|---|
| Operation Mode | 2 / 4 grinding tanks working together |
| Maximum Loading Capacity | 2/3 of the capacity of milling tank |
| Feeding Granularity | soil material ≤10mm, other materials ≤3mm |
| Output Granularity | Minimum 0.1um |
| Rotational speed ratio | 1:2 (0.4L,2L,4L); 1:1.5(12L,20L) |
| Rotation Speed | 0.4L:0~600rounds/min; 2L:0~580rounds/min 4L:0~530rounds/min 20L:0-280 rounds/min |
| Speed Regulation Mode | variable-frequency-control-type and program-control-type stepless speed regulation; manual or automatic timed; positive or negative revolving |
| Max. continuous operating time full-load) |
72 hours |
Features————————
Horizontal Design for Enhanced Mixing:
The horizontal orientation ensures efficient mixing and grinding, providing optimal results in sample preparation.
High Efficiency with Small Footprint:
Despite its compact design, this machine delivers high efficiency, making it an ideal choice for laboratories where space is at a premium.
Dry and Wet Grinding Options:
Accommodating both dry and wet grinding methods, this machine provides flexibility to researchers in tailoring their sample preparation techniques.
Wide Range of Applications:
Suitable for applications in geology, mining, metallurgy, electronics, construction materials, ceramics, chemical engineering, light industry, medicine, and environmental protection.
Precise Control over Particle Size:
Achieve precise control over particle size distribution, with a minimum granularity of 0.1 micron (1.0×10-4mm), ensuring accuracy in material processing.
Types for Planetary Ball Mill————————
| Model | Specification | Spec(ml,L) | Quantity (Set) |
|---|---|---|---|
| KD-XQM-0.4L | 0.4L | 50-100ml | 4 mill tanks |
| KD-XQM-1L | 1L | 50-250ml | 4 mill tanks |
| KD-XQM-2L | 2L | 560-500ml | 4 mill tanks |
| KD-XQM-4L | 4L | 50-1000ml | 4 mill tanks |
| KD-XQM-8L | 8L | 0.5-2L | 4 mill tanks |
| KD-XQM-12L | 12L | 1-3L | 4 mill tanks |
| KD-XQM-16L | 16L | 1-4L | 4 mill tanks |
Package & Shipping————————
Package Type:
PE Form + Cartons / Woodern cases;
Can be dispatched according to customr's requirement
Port:
Shanghai Port, Guangzhou Port, Tianjin Port, Qingdao port.
Delivery time:
Within 3-7 working days from the date of payment receipt
Factory————————
FAQ————————
1.Q: What is the size in your products?
A: The minimum type is 0.4L planetary ball mill Model XQM-0.4A in size of 53*30*34cm, machine weight 26kgs. We have other types from 0.2-100L to 100L for your options.
2.Q: What is your terms of delivery?
A: FOB, CFR, CIF.
3.Q: Can you accept small quantity sample order before production?
A: Yes, we can offer sample for your testing first before production, but the customers have to pay the courier cost.
4.Q: What is your production time?
A: Generally, it will take 3-7 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
5.Q: What is your terms of payment?
A: T/T 30% as deposit, 70% balance against the copy of original B/L. Or 100% L/C at sight. We'll show you the photos of the products and the copy of original B/L before you pay the balance.
6.Q: What is the working principle of planetary ball mill?
A: Please refer to this news: China Hunan jingshengda ceramic technology Co.,ltd latest company news about Working principle of planetary ball mill (ecer.com)
