Small Ball Mill
>
|
|
| Place of Origin | Hunan, China |
| Brand Name | Kingda |
| Certification | CE ISO |
| Model Number | KD-XQM-1L |

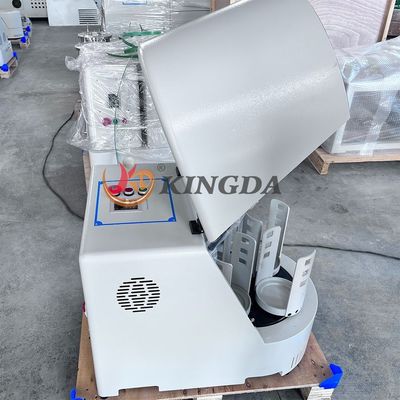

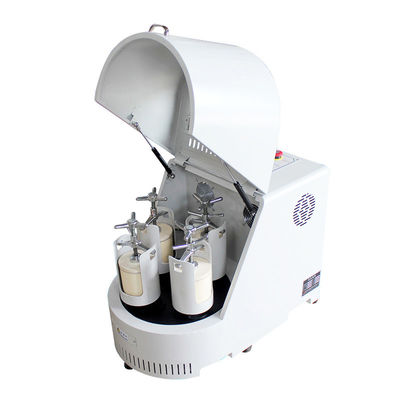

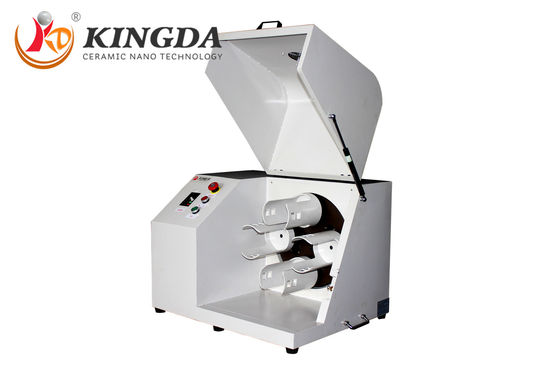

Vertical/Horizental Grinding Powder Planetary Ball Mill Machine Planetary ball mill
Product Description————————
1. Vertical planetary ball mill is a necessary device of high-tech materials mixing, fine grinding, sample making, new product development and small batch production.
2. Planetary ball mill owns small volume, high efficiency, low noise and functional features which is a ideal equipment for R&D institution, university, enterprises laboratory to get samples (each experiment can get four samples at the same time).
3. It gets powder samples under the vacuum state when equipped with vacuum ball mill tank.

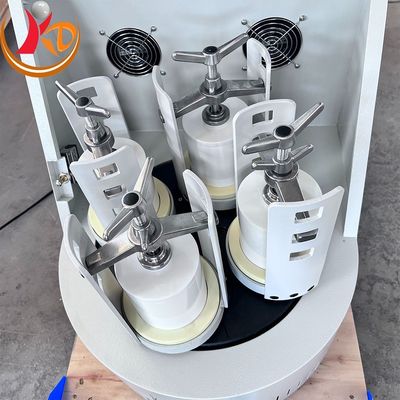

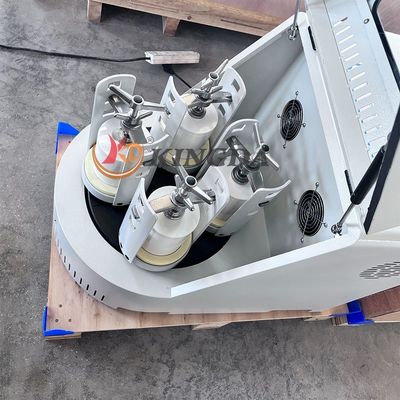

4. 0.4L planetary ball milling machine has four ball grinding tanks installed on one turnplate. When the turnplate rotates, the tank axis makes planetary movements and the balls in the tanks grinds and mixes samples in high speed movement.
5. The product can smash and blend various products of different materials and granularity with dry or wet methods. Minimum granularity of grinded products can be as small as 0.1 micron (i.e.) 1.0×10-4mm)
6. It is widely used in the fields of Geology, Mining, Metallurgy, Electronics, Construction Material, Ceramics, Chemical Engineering, Light Industry Medicine, Environmental Protection etc.
Application————————
Food Sample Preparation:
Planetary ball mills are employed for the grinding and mixing of food samples, ensuring the uniform distribution of components such as spices, pigments, and additives. They play a crucial role in food quality control and research and development.
Pigment and Ink Production:
In the manufacturing of pigments and inks, planetary ball mills are utilized to grind pigment particles, ensuring uniform color and high pigment dispersion, thereby enhancing the quality of the final product.
Cosmetic Formulation and Production:
Applied in cosmetic production, planetary ball mills enable the precise grinding and mixing of cosmetic ingredients, ensuring a smooth texture and even distribution of colors in the final product.
Waste Treatment and Recycling:
Planetary ball mills find application in waste treatment, facilitating efficient grinding and mixing processes that contribute to the recycling of waste materials. For instance, they can grind discarded plastics into reusable granules.
Features————————
Technical Specifications————————
| Drive Mode | gear drive / belt drive |
|---|---|
| Operation Mode | 2 / 4 grinding tanks working together |
| Maximum Loading Capacity | 2/3 of the capacity of milling tank |
| Feeding Granularity | soil material ≤10mm, other materials ≤3mm |
| Output Granularity | Minimum 0.1um |
| Rotational speed ratio | 1:2 (0.4L,2L,4L); 1:1.5(12L,20L) |
| Rotation Speed | 0.4L:0~600rounds/min; 2L:0~580rounds/min 4L:0~530rounds/min 20L:0-280 rounds/min |
| Speed Regulation Mode | variable-frequency-control-type and program-control-type stepless speed regulation; manual or automatic timed; positive or negative revolving |
| Max. continuous operating time full-load) |
72 hours |
Types for Planetary Ball Mill————————
| Main Parameters of Vertical Planetary Mill Ball (SquareType) | ||||||
| Model | Power(KW) | Voltage | Dimension(mm) | Revolution Speed (rpm) |
RotationSpeed (rpm) |
Weight (KG) (for your reference) |
| KD- XQM-1 | 0.75 | 220V-50Hz | 750*470*564 | 35-325 | 70-670 | 80 |
| KD-XQM-2 | 0.75 | 220V-50Hz | 750*470*564 | 35-335 | 70-670 | 80 |
| KD-XQM-4 | 0.75 | 220V-50Hz | 750*470*564 | 35-335 | 70-670 | 80 |
| KD-XQM-6 | 0.75 | 220V-50Hz | 750*470*564 | 35-335 | 70-670 | 80 |
| KD-XQM-8 | 1.5 | 220V-50Hz | 900*600*640 | 35-290 | 70-580 | 132 |
| KD-XQM-10 | 1.5 | 220V-50Hz | 900*600*640 | 35-290 | 70-580 | 132 |
| KD-XQM-12 | 1.5 | 220V-50Hz | 900*600*640 | 35-290 | 70-580 | 132 |
Accessories of Grinding Pots & Balls————————
Available grinding jars in full sizes:
Zirconia ball mill jar, alumina ball mill jar, Agate ball mill jar, Tungsten ball mill, hard metal mill jar and etc.
Package & Shipping————————
Package Type:
PE Form + Cartons / Woodern cases;
Can be dispatched according to customr's requirement
Port:
Shanghai Port, Guangzhou Port, Tianjin Port, Qingdao port.
Delivery time:
Within 3-7 working days from the date of payment receipt
Factory————————
FAQ————————
1.Q: What is the size in your products?
A: The minimum type is 1L planetary ball mill. We have other types from 0.2-100L to 100L for your options.
2.Q: What is your terms of delivery?
A: FOB, CFR, CIF.
3.Q: Can you accept small quantity sample order before production?
A: Yes, we can offer sample for your testing first before production, but the customers have to pay the courier cost.
4.Q: What is your production time?
A: Generally, it will take 3-7 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
5.Q: What is your terms of payment?
A: T/T 30% as deposit, 70% balance against the copy of original B/L. Or 100% L/C at sight. We'll show you the photos of the products and the copy of original B/L before you pay the balance.
Our Service————————
1. We can produce other grinding balls as your need.
2. We test all the goods before delivery.
3. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
4. If you have any questions, please contact with us without any hesitation, we will reply you in 2 hours.
ABOUT KINGDA————————
1. HUNAN KINGDA CERAMIC TECHNOLOGY CO.,LTD is a manufacturer of the Grinding Media Ball, Grinding Jars, Zirconium Dioxide, Zirconia structures, etc.
2. "Quality Is in the First Position forever", we have gained a high reputation and good recognition from a lot of domestic and overseas customers such as University of Oxford, Lough borough University, Peking University, Tsinghua University, etc.
3. We promise that we would make great efforts to provide high quality grinding products and best services for all customers in the coming years.
4. Nowadays, KINGDA CERAMIC MATERIALS has gained great reputation from our business partners. We will continue to contribute the best to realize mutual benefit and sustainability.
5. We appreciate your interest and support in the efforts and passion of KINGDA CERAMIC, the company of Human Technology.
