Ceramic Grinding Media
>
|
|
| Place of Origin | Hunan, China |
| Brand Name | Kingda |
| Model Number | 0.1-50MM |

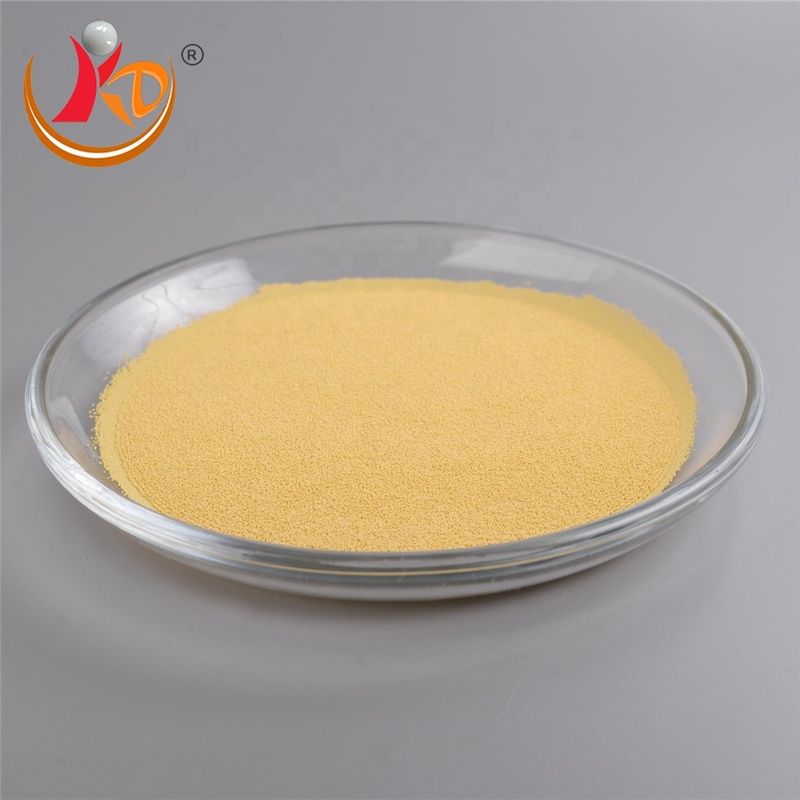

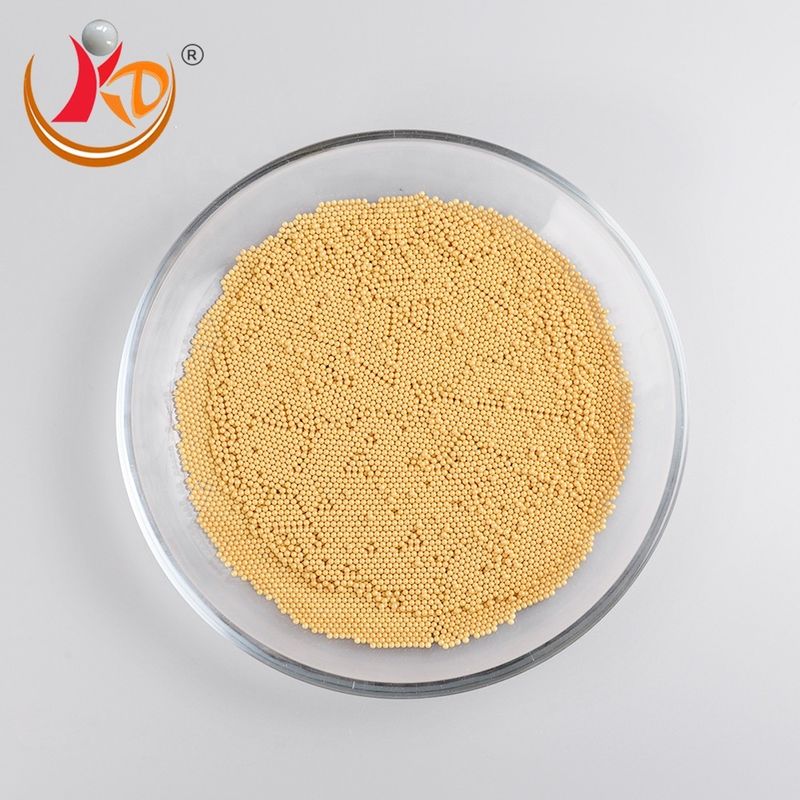

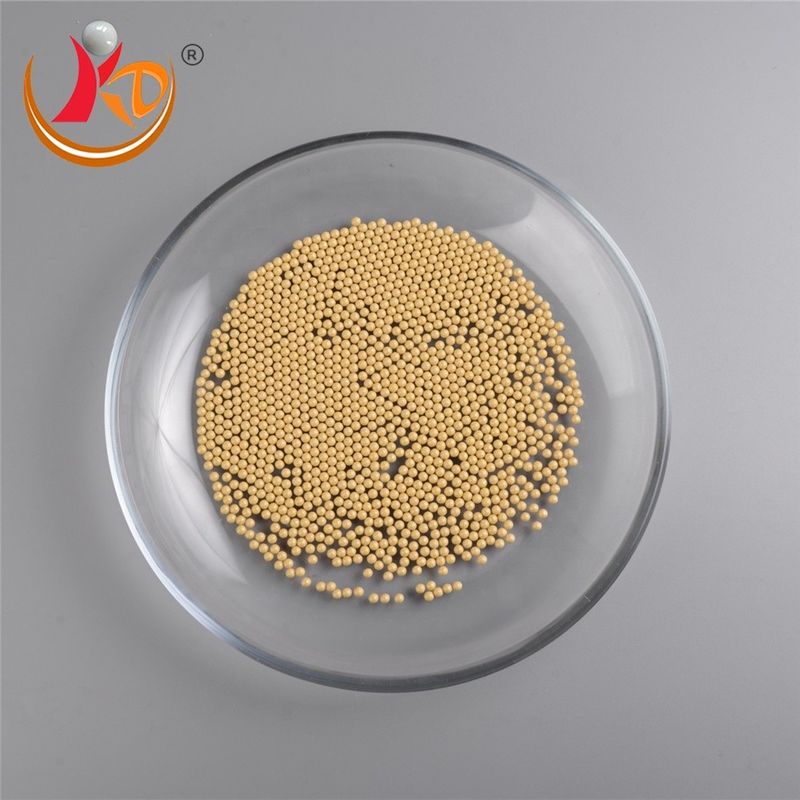

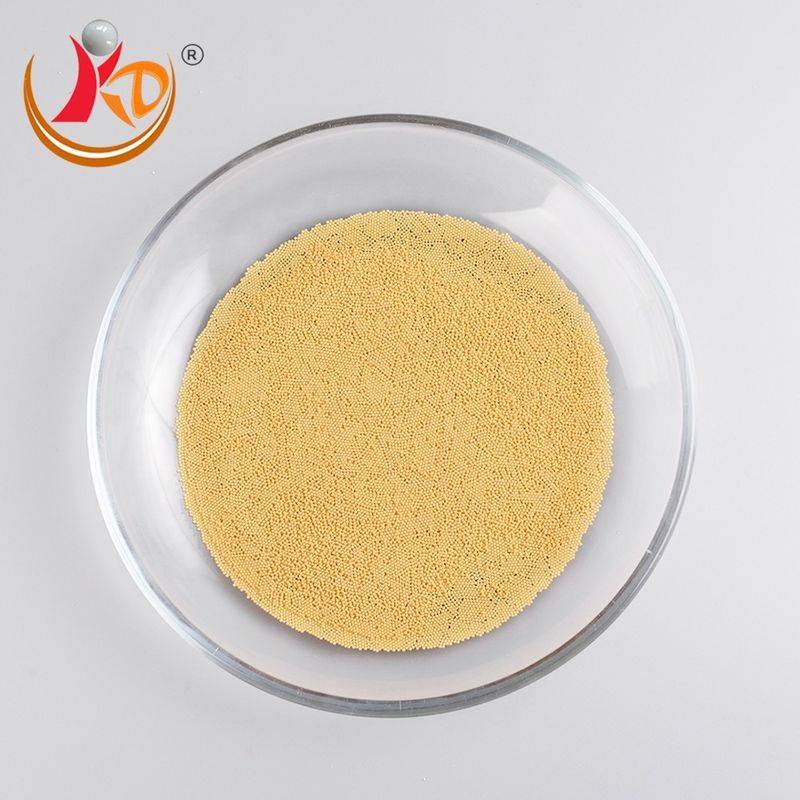

Ce-tzp/cerium oxide stabilized zirconia balls/beads for grinding and milling
|
Composition |
wt% |
ZrO2 :18~80% |
|
Packed Density |
Kg/L |
3.8(Φ7mm) |
|
Specific Density |
g/cm3 |
5.95~6.0 |
|
Hardness(HV) |
GPa |
>9 |
|
Elastic modulus |
GPa |
200 |
|
Thermal Conductivity |
W/m.K |
3 |
|
Crushing Load |
KN |
≥10 (Φ7mm) |
|
Fracture Toughness |
MPam1-2 |
8.5 |
|
Grain size |
µm |
≤0.5 |
|
Thermal expansion |
10x10 -6 / °C(20-400) |
9.0 |
| Size (mm) | Size (mm) | Size (mm) | Size (mm) | Size (mm) |
| 0.3-0.5 | 1.0-1.2 | 1.8-2.0 | 2.6-2.8 | 5 |
| 0.4-0.6 | 1.2-1.4 | 2.0-2.2 | 2.8-3.0 | 10 |
| 0.6-0.8 | 1.4-1.6 | 2.2-2.4 | 3.0-3.5 | 15 |
| 0.8-1.0 | 1.6-1.8 | 2.4-2.6 | 3.5-4.0 | according to client's reqeust |
Features:
A. Long lifespan: 30 times longer life than glass beads, 6 times than zirconium silicate beads.
B.High efficiency: around 6 times higher than glass beads; 2 times than zirconium silicate beads.
C. Excellent wear resistance and fracture toughness is especially suited for high-solid-phase high viscosity, high hardness of the paste for grinding and dispersing of pure; good match at the same
time high input energy and the high shear machine sanding.
Applicalble industry:
It is suitable for milling and dispersing high viscosity pastes such as paper making, textile, dyeing, screen printing inks, offset inks, CaCO3, metal minerals;
and high purity products ,such as pharmaceutical and foodstuff.
2. Ceramic Inks & Electronic Paste
3. Refractory materials,Magnetic materials
Dye,Pigment,Textile,Printing
4. Cosmetics & Medicine,Agrochemical
1.What's product your company supply?
A.We can supply yttrium stab.zirconia bead,cerium stab.zirconia bead,zirconia silicate bead,high alumina ball, agate ball, ball mill grinding jar,tungsten carbide ball, zirconium powder,ceramic structual elements etc.
2. Q: What is your MOQ?
A: 1KG. We accept smaller quantity but price is higher.
3. Q: Can you provide free samples?
A: Yes, the buyers just afford shipping cost .
4. Q: What is your production time for bulk order?
A: 7~30 days, according to order quantity.
5. Q: What is your normal package?
A: Woven bag or barrel ,drum,carton box and pallet.
6. Q: What is your payment term?
A: T/T 30%-70% Deposit, balance against copy of B/L.
L/C at sight,Western Union, paypal,Visa,etc
