Ceramic Grinding Media
>
|
|
| Place of Origin | Hunan, China |
| Brand Name | Kingda |
| Model Number | 0.3-3.5MM |
Product Description————————

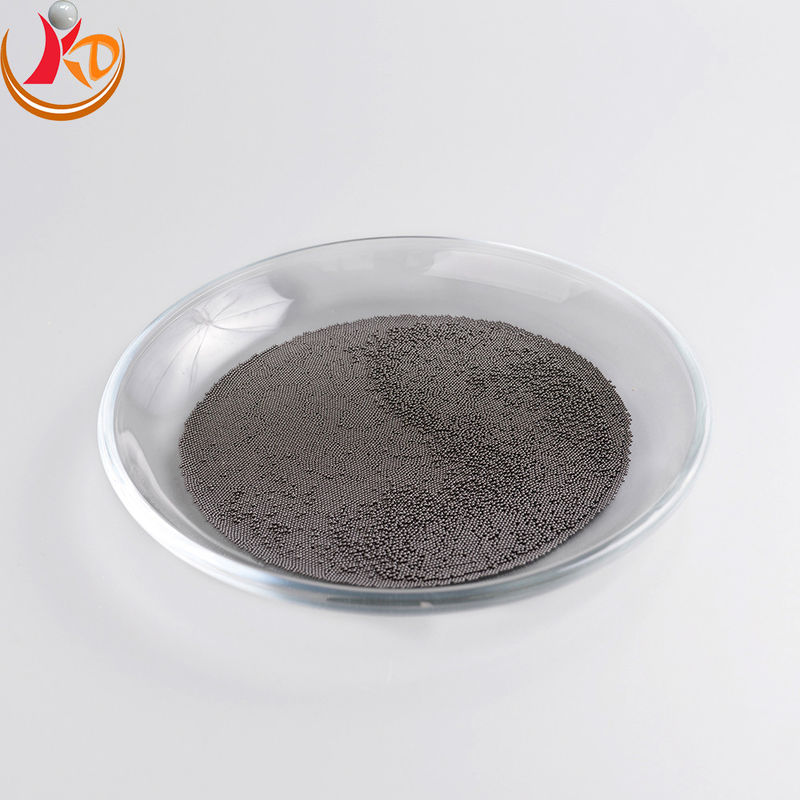

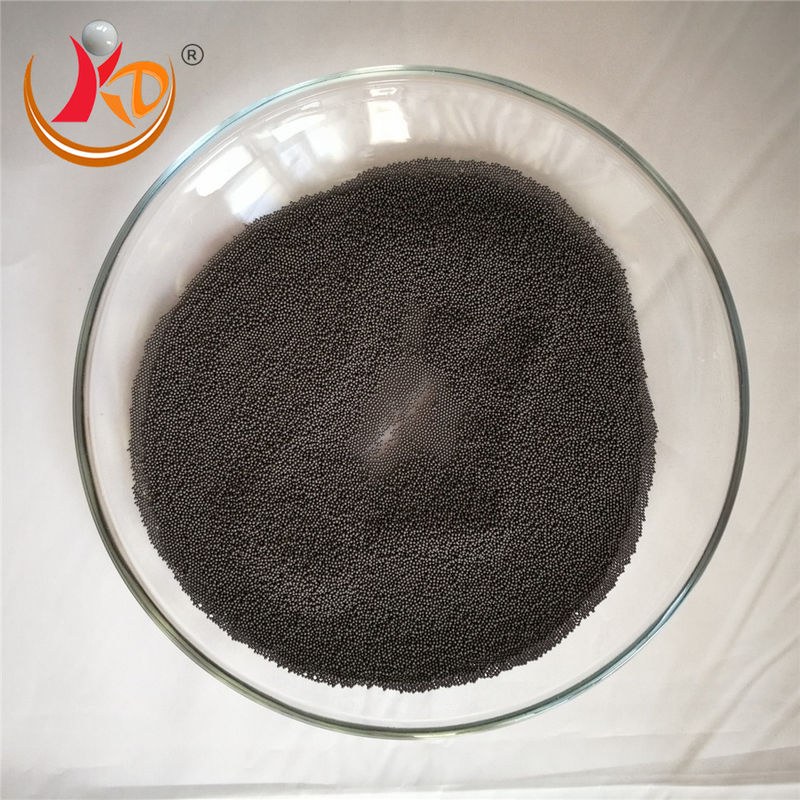

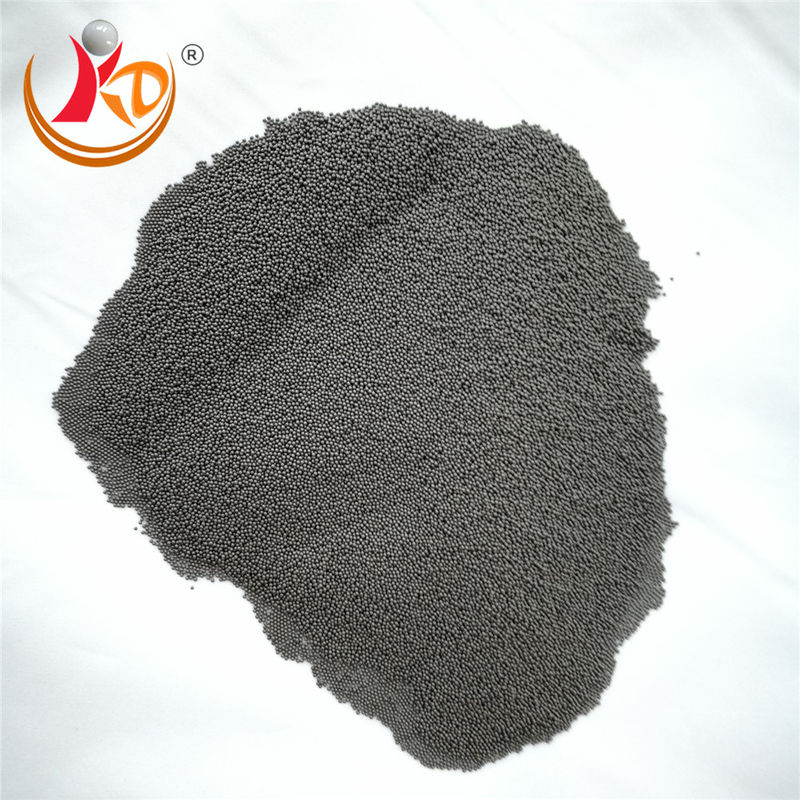

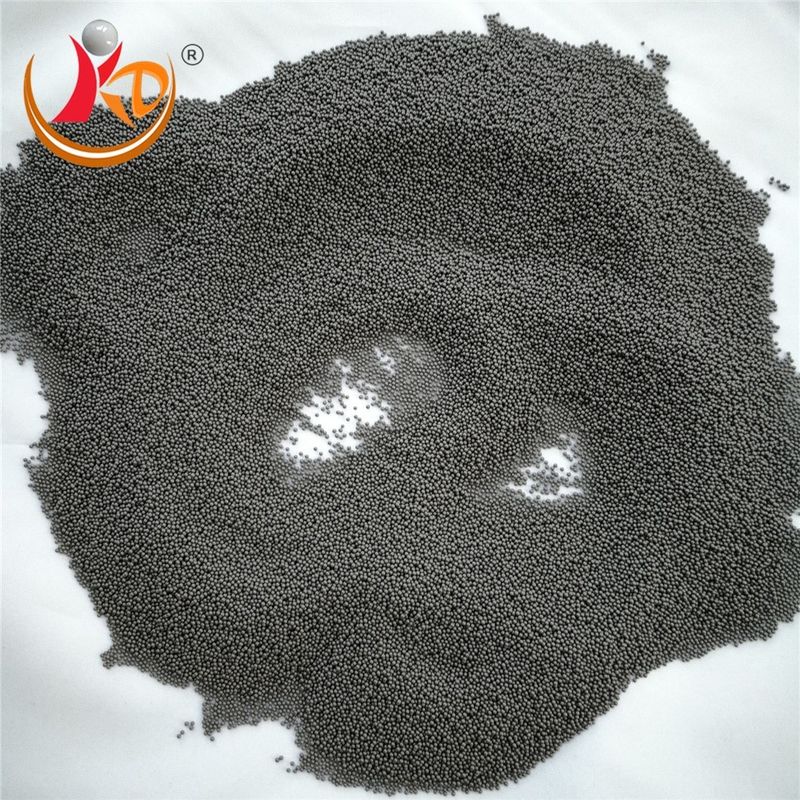

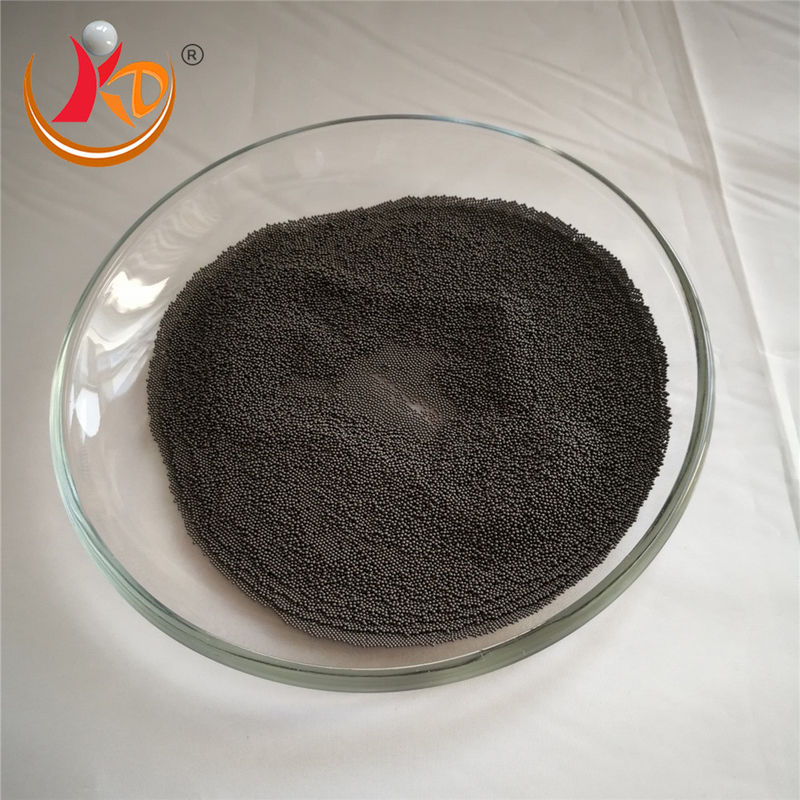

1. Zirconia grinding beads is also called Zirconia grinding ball or Zirconia ceramic ball or Zirconium bead or ultrafine grinding media.
2. Zirconia material has advantages of high hardness, high strength, high tenacity, high wear resistance and good corrosion resistance which is widely applied in fields of ceramics, fire proofing material, machinery, electronic, photics, Aeronautics and astronautics, biology and chemicals and etc.
3. It owns gloss of pearl and smooth surface and is the best ball among all grinding media.
Application————————
1. Particularly suitable for vertical stirring mills, horizontal roller ball mills, vibrating mills and various high linear, speed pin- type sand mills.
2. For wet or dry ultrafine dispersion and grinding of pastes and powders without contamination.
3. Perfect grinding media with good flatness, smooth surface, bright,high density and high strength.
4. Wear and corrosion resistant product: coating, textile, pigment, dyeing.
5. High strength, high tenacity product: magnetic material, piezoelectric ceramics, dielectric ceramics.
6. Pollution prevention: medicine, food, cosmetics.
7. Ceramics: electronic ceramics, refractory ceramics, structural ceramics.
Features————————
A. Long lifespan: 30 times longer life than glass beads, 6 times than zirconium silicate beads.
B. High efficiency: around 6 times higher than glass beads; 2 times than zirconium silicate beads.
C. Excellent wear resistance and fracture toughness is especially suited for high-solid-phase high viscosity, high hardness of the paste for grinding and dispersing of pure; good match at the same
Properties and technique parameters————————
| Composition | wt% | ZrO2 :85~88% CeO2:10~14% |
| Packed Density | Kg/L | 3.8(Φ7mm) |
| Specific Density | g/cm3 | 6.15 |
| Hardness(HV) | GPa | >9 |
| Elastic modulus | GPa | 200 |
| Thermal Conductivity | W/m.K | 3 |
| Crushing Load | KN | ≥10 (Φ7mm) |
| Fracture Toughness | MPam1-2 | 8.5 |
| Grain size | µm | ≤0.5 |
| Thermal expansion Coefficient(20-400 °C) | 10x10 -6 / °C(20-400) |
9.0 |
Matching Machine——————
Available grinding jars in full sizes:
Zirconia ball mill jar, alumina ball mill jar, Agate ball mill jar, Tungsten ball mill, hard metal mill jar and etc.
Package & Shipping————————
Package Type:
PE Form + Cartons / Woodern cases;
Can be dispatched according to customr's requirement
Port:
Shanghai Port, Guangzhou Port, Tianjin Port, Qingdao port.
Delivery time:
Within 3-7 working days from the date of payment receipt
Factory————————
QC————————
Laser Particle Size Analyzer Vickers hardness tester Microscopic detection Testing Meter of Powder
Specific Area
FAQ————————
1.Q: What is the size in your products?
A: Our common size is 0.3-8mm. We can also produce according to your request.
2.Q: What is your terms of delivery?
A: FOB, CFR, CIF.
3.Q: Can you accept small quantity sample order before production?
A: Yes, we can offer sample for your testing first before production, but the customers have to pay the courier cost.
4.Q: What is your production time?
A: Generally, it will take 3-7 days after receiving your advance payment. The specific delivery time depends on the items and the quantity of your order.
5.Q: What is your terms of payment?
A: T/T 30% as deposit, 70% balance against the copy of original B/L. Or 100% L/C at sight. We'll show you the photos of the products and the copy of original B/L before you pay the balance.
Our Service————————
1. We can produce other grinding balls as your need.
2. We test all the goods before delivery.
3. We respect every customer as our friend and we sincerely do business and make friends with them, no matter where they come from.
4. If you have any questions, please contact with us without any hesitation, we will reply you in 2 hours.
