50ml Zirconia Grinding Ball Mill Jar Ceramic Jar For Planetary Ball Mill
  • 50ml Zirconia Grinding Ball Mill Jar Ceramic Jar For Planetary Ball Mill
  • 50ml Zirconia Grinding Ball Mill Jar Ceramic Jar For Planetary Ball Mill
  • 50ml Zirconia Grinding Ball Mill Jar Ceramic Jar For Planetary Ball Mill
50ml Zirconia Grinding Ball Mill Jar Ceramic Jar For Planetary Ball Mill

50ml Zirconia Grinding Ball Mill Jar Ceramic Jar For Planetary Ball Mill

Place of Origin Hunan, China
Brand Name Kingda
Model Number 50ML-3L
Product Details
Output Size (mesh):
45 - 12500 Mesh
Material:
ZrO2
Condition:
New
Type:
Ball Mill
Dimension(L*W*H):
65*55*75, 65*55*75
Weight (KG):
5 KG
Warranty:
Unavailable
Key Selling Points:
Easy To Operate
Applicable Industries:
Building Material Shops, Manufacturing Plant, Machinery Repair Shops, Food & Beverage Factory, Farms, Retail, Printing Shops, Energy & Mining
Density:
6.02g/cm3
Industry Characteristics:
Grinding
Raw Material:
95% ZrO2
Applied Fields:
Ink,coating, Painting,mineral,magnetic...
Certificate:
ISO9001:2008/Tuv
Payment & Shipping Terms
Minimum Order Quantity
1 PC
Price
Negotiable
Packaging Details
PE Foam + Cartons / Wooden cases
Delivery Time
3-7 Days
Payment Terms
L/C, D/A, D/P, T/T, Western Union
Supply Ability
5000 pcs / Month
Product Description
Product Description

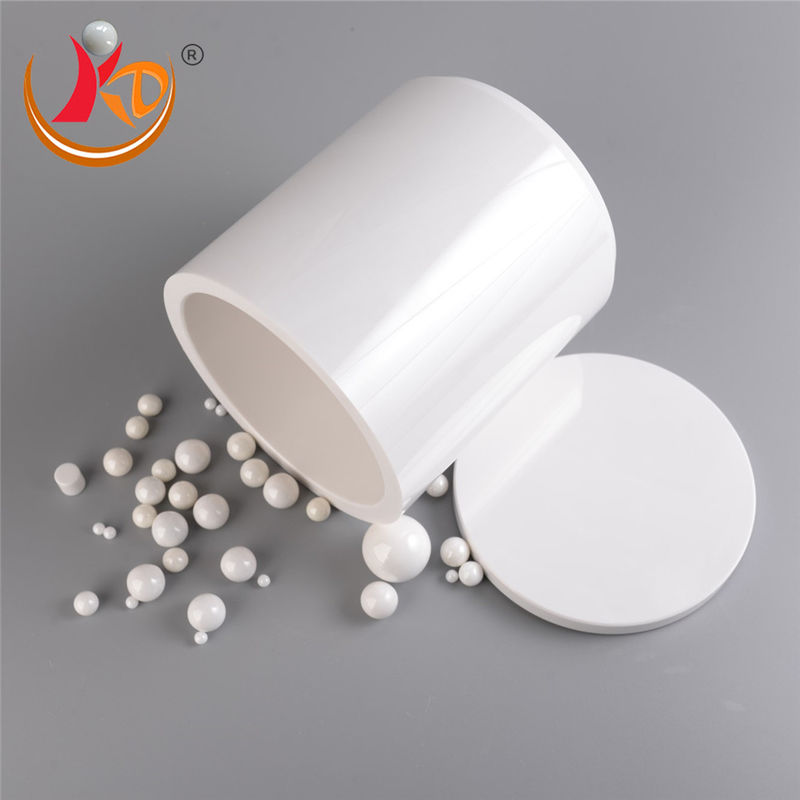

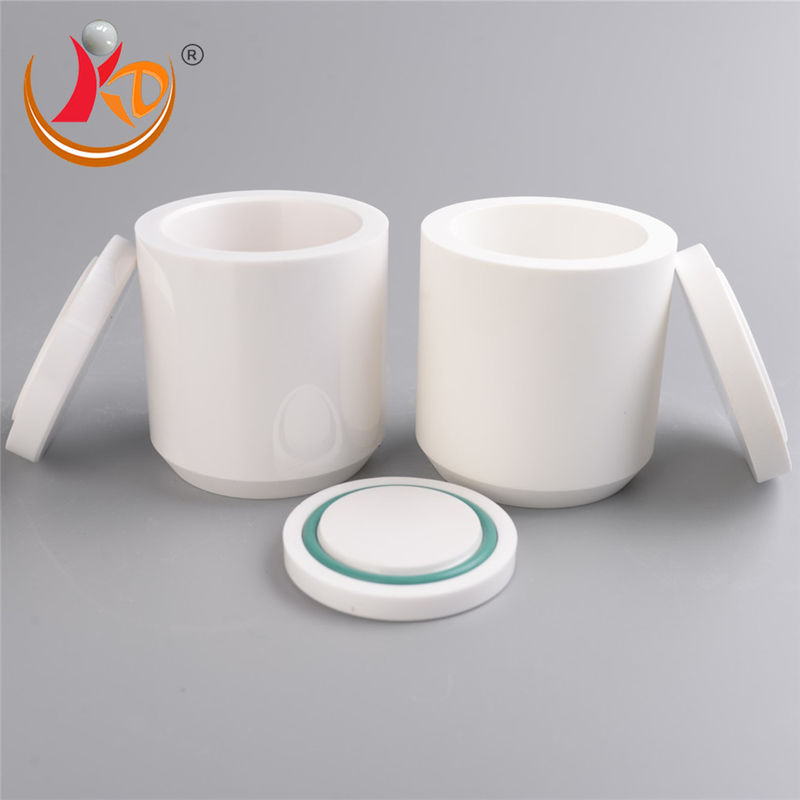

Zirconia Grinding Jar

Highly polished YSZ (Yttrium stabilized ZrO2) zirconium oxide jars, 60 times the hardness of regular steel, highly wear-resistant and resistant to acid and solvents. The grinding/mill jars are widely applied in the field of paint, ink, geology, metallurgy,
electronics, construction material, ceramics, chemical engineering, medicine, environmental protection and so on.
Features:
A. High hardness, high strength, high tenacity, high wear resistant and good corrosion resistant.
B. Strong acid resistant and alkali resistant.

Applicable industry:
Zirconia material has advantages of high hardness, high strength, high tenacity, high wear resistance and good corrosion resistance which is widely applied in fields of ceramics, fire proofing material, machinery, electronic, Aeronautics and astronautics, biology, medicine and chemicals and etc.


Main advantage


1.It is one of biggest manufacture to make ceramic grinding media ball in China.

2.SGS, ROHS certificate,Strict quality control system ISO 9001.

3.Professional,Sincerity,Concentration,Honesty,Constant striving for improvement,Mutual Glory.


5. Quick-delivery, safe packing
FAQ
1.Q:What's product your company supply?
A.We can supply yttrium stab.zirconia bead,cerium stab.zirconia bead,zirconia silicate bead,high alumina ball, agate ball,tungstern carbide ball, ball mill grinding jar,tungsten carbide ball, zirconium powder,ceramic structual elements etc.

2. Q: What is your MOQ?
A: 1KG. We accept smaller quantity but price is higher.

3. Q: Can you provide free samples?
A: Yes, the buyers just afford shipping cost .

Product Paramenters

 Specification Parameters:






Volume of Jar
Inner Diameter
(mm)
External Diameter
(mm)
Inner Depth
(mm)
Height of without lid
(mm)
Total Height
(mm)
Weight
(g)
50ml
38
55
52
60
67
610
100ml
50
65
58
66
75
835
250ml
74
92
70
78
88
1760
500ml
84
100
100
108
118
2300
1L
108
128
128
138
150
4780
2L
138
158
140
150
162
6750
3L
138
158
198
208
220
8400
Remarks:1. Size deviation within ±2mm； 2. Weight deviation within ±0.2KG













Factory equipment
50ml Zirconia Grinding Ball Mill Jar Ceramic Jar For Planetary Ball Mill 0
The grinding process
50ml Zirconia Grinding Ball Mill Jar Ceramic Jar For Planetary Ball Mill 1
Packaging and delivery
50ml Zirconia Grinding Ball Mill Jar Ceramic Jar For Planetary Ball Mill 2
50ml Zirconia Grinding Ball Mill Jar Ceramic Jar For Planetary Ball Mill 3
