Planetary Jar Rolling Mill Alumina Zirconia Jar Mill Machine

Planetary Jar Rolling Mill Alumina Zirconia Jar Mill Machine

Place of Origin Hunan, China, Hunan, China
Brand Name Kingda
Certification TUV
Product Details
Output (kg/h):
1 - 100 Kg/h
Feeding Size (mm):
1 - 100 Mm
Output Size (mesh):
45 - 12500 Mesh
Range Of Spindle Speed(r.p.m):
420 - 512 R.p.m
Material:
Other
Application:
Medicine Processing, Chemicals Processing
Condition:
New
Type:
Ball Mill
Product Type:
Machine
Voltage:
220V
Weight (KG):
92 KG
Warranty:
1 Year
Key Selling Points:
High-accuracy
Applicable Industries:
Printing Shops, Food & Beverage Shops, Other
Showroom Location:
None
Marketing Type:
Other
Machinery Test Report:
Not Available
Video Outgoing-inspection:
Not Available
Warranty Of Core Components:
1 Year
Core Components:
Other
Product Name:
Planetary Ball Mill
Condition::
New
Type::
Ball Mill
Weight::
93kg
Warranty::
1 Year
Applicable Industries::
Lab Research
After-sales Service Provided:
Video Technical Support
Highlight:

Planetary Jar Rolling Mill

,

Jar Rolling Mills

,

Zirconia Jar Mill Machine

Payment & Shipping Terms
Price
$2,099.00/sets 1-1 sets
Packaging Details
ONE SET
Product Description



High Energy Planetary Ball Mill with Zirconia Jars and Zirconia Beads



Planetary Jar Rolling Mill Alumina Zirconia Jar Mill Machine 0

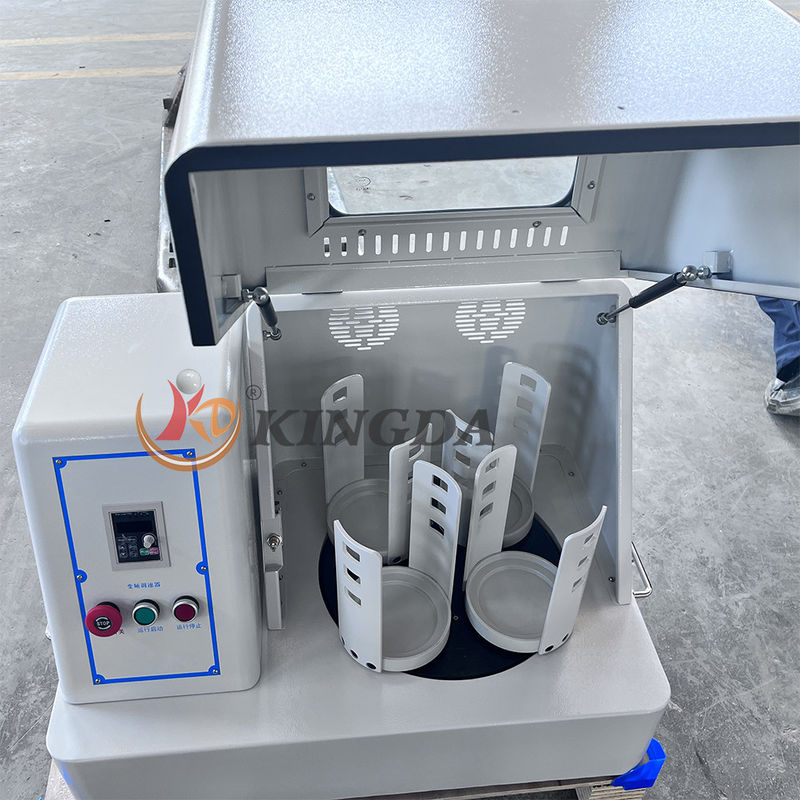

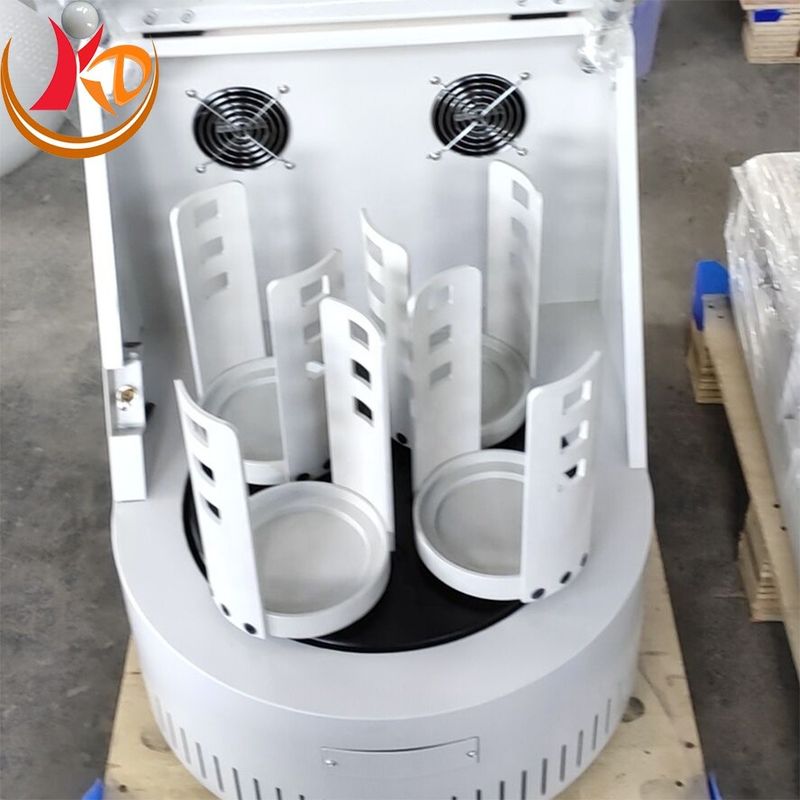

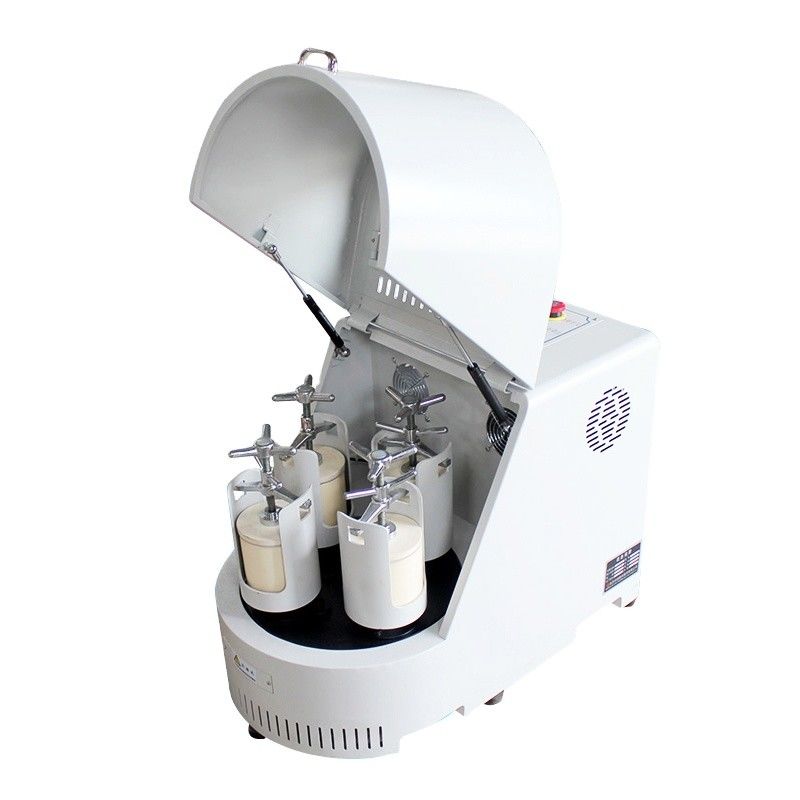

Planetary ball mill

Planetary Ball Mill is designed for mixing, fine grinding, and preparing small volume high-tech material production, which
features with small volume, high efficiency, low noise and Lock clamps. If choosing with optional vacuum jar, it can grind samples
under the vacuum condition or filled with inert gas.

Planetary Jar Rolling Mill Alumina Zirconia Jar Mill Machine 1


Working Principle

The planetary gear ball mill is named after its working mode similar to the trajectory of planetary motion in the solar system, that is, the planets revolve around the stars and rotate at the same time. On the working turntable, four or two symmetrical ball mills are installed at the eccentric position of the middle fixed gear. When the turntable rotates (revolution), it drives the ball mill to rotate around the axis of rotation, and the direction is opposite to the rotation of the turntable, forming a planetary motion. The transmission ratio of revolution and rotation is 1:2 (one revolution of revolution is two rotations of rotation). When the balls in the ball mill move together with the ball mill, they are affected by the superposition of Coriolis force (i.e., rotational deflection force), generating strong impact and friction. This combination of impact and friction allows the grinding media balls in the ball mill jar to grind and mix the samples at high speed.

Ball mill jars are impacted strongly in high speed movement, and samples are eventually ground into powder. Various kinds of different materials can be ground by the mill with dry or wet method. Minimum granularity of ground powder can be as small as 0.1μm.


Planetary Jar Rolling Mill Alumina Zirconia Jar Mill Machine 2



Planetary Jar Rolling Mill Alumina Zirconia Jar Mill Machine 3
Planetary Jar Rolling Mill Alumina Zirconia Jar Mill Machine 4


Application Field


The product is extensively applied in the fields of Geology, Mining, Metallurgy, Electronics, Construction Material, Ceramics,
Chemical Engineering, Light Industry Medicine, Environmental Protection etc.
It's widely used in research institutes, universities, enterprise laboratories and small batch producing manufacturer.



Product Paramenters
Planetary Jar Rolling Mill Alumina Zirconia Jar Mill Machine 5
The grinding process
Planetary Jar Rolling Mill Alumina Zirconia Jar Mill Machine 6

Packaging and delivery

Planetary Jar Rolling Mill Alumina Zirconia Jar Mill Machine 7
Planetary Jar Rolling Mill Alumina Zirconia Jar Mill Machine 8
Certificate
Planetary Jar Rolling Mill Alumina Zirconia Jar Mill Machine 9
Planetary Jar Rolling Mill Alumina Zirconia Jar Mill Machine 10
